OEM Mini 13.56 MHz HF RFID metal Tag Sticker System Designed For Asset Tracking

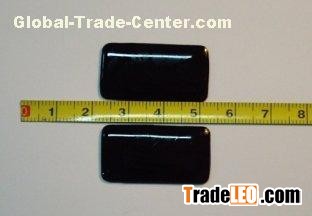

metal Mount RFID tag MT007, operating at 13.56MHz with a mini size 26mm×12m×2.5mm, have an impressive read range from 40mm to 100mm on metal basing on different RFID readers. And it can easily be affixed to any metal surface either mechanically or by using industrial adhesives.

This RFID metal tag is also available for customization and OEM.

Applications:

Army Gun Management, metal Case Management, metal Mould Management, Auto-Lock Management, Car Management, and so on

Specifications:

1.      Type: Contactless R/W

2.      Operating Frequency:  HF (13.56MHz)

3.      IC Available: I-CODE(ISO 15693-3), Mifare® Ultralight (ISO 14443A), Mifare®1K  (ISO 14443A), Mifare®4K  (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

4.      Available IC Data Sheets as PDF Download

          I-Code (13.56 MHz, 1024 bit, R/W, ISO/IEC 15693) –

http://www.smart-rfid-tag.com/I_Code_Sli_Data_Sheet.pdf

Mifare 1 S50 (13.56 MHz, 1K Byte, R/W, ISO 14443 A) –

http://www.smart-rfid-tag.com/MF1_S50_Data_Sheet.pdf

5.      Size: 26mm×12m×2.5mm (Mini Size)

6.      Reading Distance: Up to 5cm

7.      Material: Epoxy / Special Magnetic Material / 3M® Glue

8.      Operating Temperature: -40º C to +80º C

9.      Storage Temperature: -40º C to +100º C

Competitive Advantage:

1.      Waterproof IP 68

2.       26mm×12m×2.5mm Mini Size

3.      100, 000 times reading & writing

4.      Excellent read/write performance on any metal surface

5.      Exceptional temperature and harsh environmental performance
