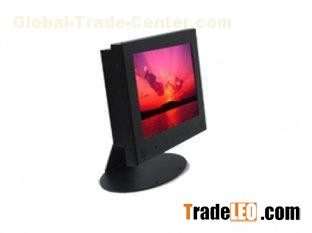

8.4 Inch 800x600 Pixels VESA DDC 2B 100~240V 15W Industrial Resistive Touchscreen Monitor
| Model Name | AMG-08IPZG05T2 |
| Viewable Size Image | 8.4" |
| Active Display Area (mm) | 170.4 (H)x127.8(V) |
| Pixel Pitch (mm) | 0.213(H)x0.213(V) |
| Number of Pixels | 800x600 |
| Contrast Ratio | 500:1 |
| Display Color | 262, 144(6bit/colors) |
| Brightness (CD/m^2) | 350 CD/m^2 |
| Viewing Angle (CR >=10) | 130/110 |
| Synchronization Range | 20~75Hz |
| Recommended Resolution | 800x600@60Hz, 75Hz |
| Signal Connector | 15 pin D-sub |
| Power Source | AC 100~240V, Universal, ±10% |
| Power Consumption | 15W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
| Optional Video Input | No |
| Optional DVI Input | No |
| Optional Touch Screen | Resistance |
|
|
|
