Brand:keyi

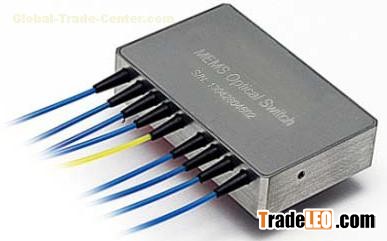

Model:Mini 1×8
MOQ:2 Pieces
◇Feature: ◇ Application:
Unmatched Low Cost Optical Netrwork Protection/Restoration
Low Insertion Loss Optical Signal Routing
High Channel Isolation Configurable Optical Add/Drop
Highly Stable and Reliable Transmitter and Receiver Protection
Epoxy-Free Optical path Network Test Systems
Latching or Non-Latching Instrumentation
◇ Performance
| Parameter | Specification | |
| Operating Wavelength (nm) | 850&1310±40 | 1260~1650 |
| Insertion Loss (dB) | ≤1.0 | ≤1.2 |
| WDL (dB) | ≤0.25 | ≤0.30 |
| PDL (dB) | ≤0.1 | |
| Channel Cross Talk (dB) | ≥40 | ≥55 |
| Repeatability (dB) | ±0.02 | |
| Return loss (dB) | ≥35 | ≥55 |
| Switching Speed (ms) | ≤10 | |
| Drive Voltage (V) | 5 | |
| Power Handing (mW) | 500 | |
| Durability (Cycles) | 10 Million | |
| Operating Temperature (℃) | 0～70 | |
| Storage Temperature (℃) | -40～85 | |
| Fiber Type | SMF-28 | |
| Fiber Length (m) | Customer Specify | |
| Dimension (L×W×H) (mm) | 36×33×11.5 | |
◇ Pins
