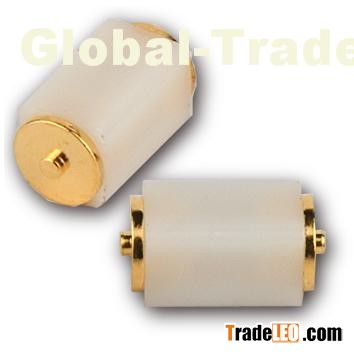

Shock detectors BL-600

Function:

1.       vibration detecting

Applications

1.      Automotive devices

2.      Home electrical appliances

3.      Communication products

4.      Toys

5.      Car Theftproof Equipment

Features:

1．BL-600 is Ball type omni signal trigger sensing switch

2．Products for any Angle position, is closed-circuit ON-state

3．Be shaken, there is switch signal output

4．Product completely airtight, waterproof, dustproof

5．Fine plating, long service life

6．Material compliant with ROSH directive, replace the mercury switch

7．Switch signals simple, circuit is simple in design, economic price

Electrical characteristics:

Voltage: <12V

Current: <20mA

Conductive time: about 2ms

Closed resistance: <30 ohm

Open resistance: >value="10" tcsc="0" unitname="m" w:st="on">10M ohm

Mechanical characteristics:

Temperature range: Storage: value="40" tcsc="0" unitname="ﾰC" w:st="on">-40°C to value="80" tcsc="0" unitname="ﾰC" w:st="on">80°C, Operating: value="40" tcsc="0" unitname="ﾰC" w:st="on">-40°C to value="80" tcsc="0" unitname="ﾰC" w:st="on">80°C

Pull force of terminal: 500gf for 1 minute

Humidity: 95% RH, value="40" tcsc="0" unitname="ﾰC" w:st="on">40°C for 96 hours

Operating lifespan: 100,000 cycles

Bill of material:

Copper: Copper tube gold-plated/silver-plated

Ball: two stainless steel ball, silver-plated/silver-plated

Switch: Heat resistance nylon

Welding characteristics

   Solder tin, tin content 100%

   Welding humidity: value="260" tcsc="0" unitname="ﾰC" w:st="on">260°C ±value="10" tcsc="0" unitname="ﾰC" w:st="on">10°C

   Welding time: 2-2.5 seconds

Do not use strong acid, alkali flux

Packaging: 1000PCS/bag (PVC plastic)

Note

1.      If the product used for high security products and durability of extremely high equipment (such as life safety equipment, aviation facilities, disaster prevention device), please confirm whether a share, can seek advice our company for details

2.      In case of fire, Please do not overload applicable,

3.      The welding temperature or time more than standard, can cause switch collapse

4.      Do not use water solubility flux. May cause damage to the switch

5.      Do not use solvent wash switch

6.      This switch conduction rate of 98% (conductivity rate per 100 times value switch actions, can good conduction ratio)
