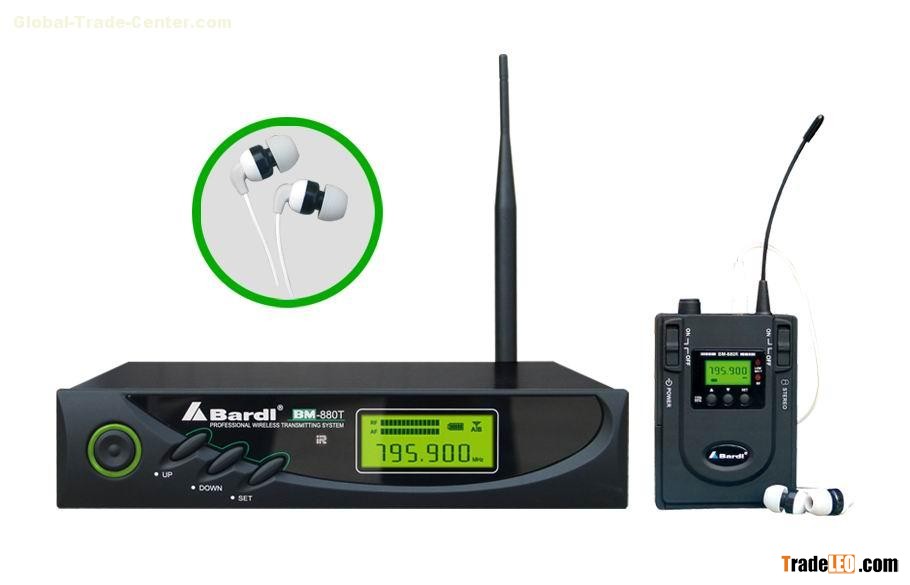

Bardl BM-880 UHF Wireless In-ear Monitor System Stereo Transmitter and Bodaypack Receiver earphone LCD Display Monitor System

 Brand New

MSRP: $899.00



Main Features:

BM-880T/BM-880R

Wireless In-ear Monitor System

1.PLL Synthesized design.

2.Frequency agility over a 24MHz bandwidth, with 16 pre-programmed frequencies.

3.Dual-antenna true diversity design eliminates signal dropout and enhances RF stability.

4.Dynamic circuitry delivers outstanding S/N ration

5.Selectable stereo or mono audio output..

6.Bright LCD channel display.

7.Dynamic limited circuitry.

8.Highly efficient power consumption circuitry ensures long operating hours from two AA batteries.

HE-02 earphone  Main Characteristic:

Type: Stereo In-ear Earphone

Diver Unit: φ9mm Mylar Speaker

Sensitivity: 104±5dB / mw at 1KHz

Impedance: 16Ω

Frequency Response: 20Hz - 22KHz

Rated Power: 2mw

Max input power: 10mw

Plug: φ3.5mm

BM-880R Stereo Bodypack Receiver:

Frequency Range: 760-790MHz  ( Comply with FCC and CE new frequency rules )

Bandwidth: 20MHz

Oscillation Mode: PLL Synthesized

Channel Separation Interval: 25KHz

Frequency Stability: ±0.005% 0 C~+50 C

Modulation Mode: FM stereo modulation

Max. Deviation Range: ±68KHz

Receiving Mode: Diversity receiving

Sensitivity: At 2μV input level, S/N>58dB (mono)

Squelch Level: Adjusting range between 2~100μV

T.H.D.:<0.5% at 1KHz

Max.S/N Ratio: 94 dBA

Frequency Response: 80Hz~15KHz ±3dB

Stereo Separation:45dB(at 1KHz)

Output Jack: 3.5mmφ stereo earphone jack

Output Power(32Ω): 2×50mW at 1KHz (THD 3%)

Earphone Impedance:16Ω

Power Supply:AA battery ×2

Current Consumption:130mA (under typical operating conditions)

Continuous Operating Hours:8 hours (using alkaline batteries under typical operating conditions)

Antenna: Fixed 1/2

Dimension (mm): 88 (L)×65(W)×23(H)  mm

Weight:105g

BM-880T Stereo Transmitter Technical Specifications:

Frequency Range: 760-790MHz ( Comply with FCC and CE new frequency rules )

Bandwidth: 20MHz

Oscillation Mode: PLL Synthesized

Channel Separation Interval: 25KHz

Frequency Stability: ±0.005%, 0°C~+50°C

Modulation: FM stereo channel modulation

Output Power: low<10mW,high<100mW

Spurious Rejection: <4nW

Maximum Deviation Range: ±40KHz

Frequency Response:50~15,000Hz

T.H.D.:<0.5% at 1KHz

Audio Input:line level×2,XLR and 6.3mmφ compound jack

Audio Output:6.3mmφ jack×2

Amplifier Gain:N/A

Antenna Connector:TNC jack,impedance: 50Ω

Dimension (mm):210 (L)×206(W)×44(H) mm

Weight:1.1Kg

Package includes:

(1)  BM-880T/BM-880R and HE-02

(2) AC-DC adapter ( 110V or 240V universal )
(3) Batteries and manual.
