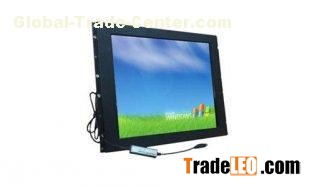

17 Inch 1280*1024 Pixels 12V DC 25.8W Industrial Resistance Touchscreen Monitor for ATM
| Model Name | AMG-17OPHA01T1 |
| Viewable Size Image | 17"+Infrared Touch |
| Active Display Area (mm) | 337.9 (H)x270.3(V) |
| Pixel Pitch (mm) | 0.264(H)x0.264(V) |
| Number of Pixels | 1280x1024 |
| Contrast Ratio | 800:1 |
| Display Color | 262, 144(6 bit + FRC) |
| Brightness (CD/m^2) | 300CD/m^2 |
| Viewing Angle (CR >=10) | 150/150 |
| Synchronization Range | 31.5~48.1KHz/56~85Hz |
| Recommended Resolution | 1280x1024@60Hz, 85Hz |
| Signal Connector | 20 pin D-sub |
| Power Source | AC 100~240V/ 12V DC |
| Power Consumption | 25.8W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
| Optional Video Input | S-Video, Composite, DVI |
| Optional DVI Input | Yes |
| Optional Touch Screen | SAW, Resistance |
