Brand:JP
Model:JPU
MOQ:-0 -
Applications

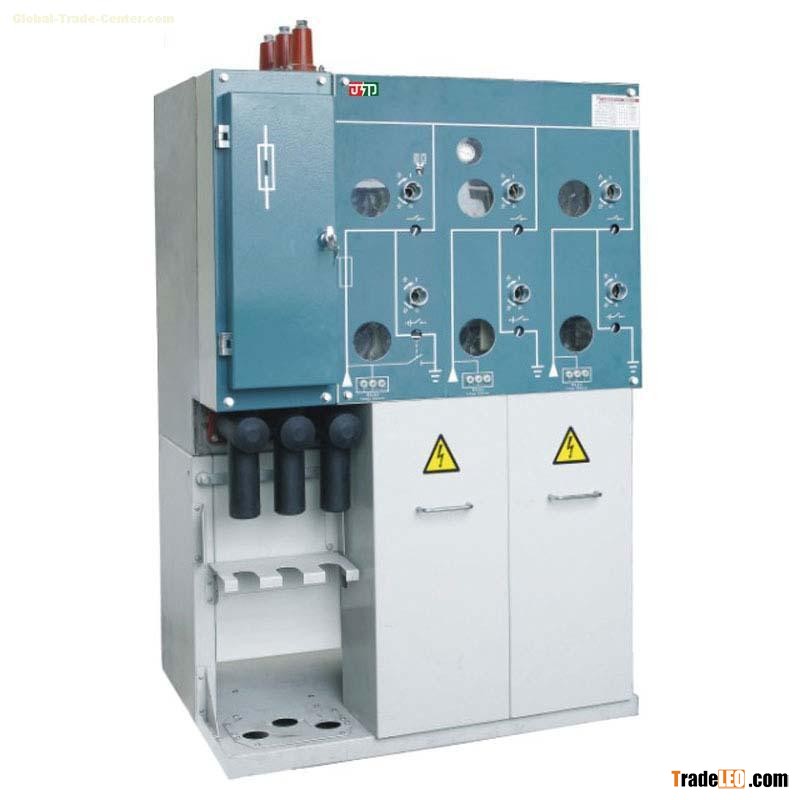

Its all live part including LBS, CB, ES and primary busbar are sealed in the tank made of stainless steel and the elbow-shape cable connectors are adopted for the incoming or out-going, that leads to the RMU has less influence from service condition therefore it is suitable for using in the bad ambient condition and relatively restricted space. Its service life is more than 20 years.
Specifications
| Rated voltage | KV | 12 |
| Rated load current | A | 630 |
| Rated fuse current | A | 100 |
| Rated breaking current | KA | 50 |
| Rated peak withstand current | KA | 125 |
| Rated short-time withstand current | KA | 25 |
| PFWV | KV | 42/48 |
| BIL | KV | 76/85 |
| Cubicle size | mm | W (various)xH1570xD800 |
| | | |
Our Product Range
Model No. Description
JPG1-12 SF6 Compact Gas Insulated Switchgear C-GIS (12kV)
JPG1-40 SF6 Compact Gas Insulated Switchgear C-GIS (40.5kV)
JPU1-12 SF6 Ring Main Unit RMU(12kV)
JPW1-12 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (12kV)
JPW2-12 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (12kV)
JPW2-40 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (40.5kV)
JPF3-12 Air Insulated Switchgear Of Fixed Type (12kV)
JPF2-12 SF6 Load Break Switch And Load Break Fuse Switch LBS & LBFS Panel (12kV)
JPF2-24 SF6 Load Break Switch And Load Break Fuse Switch LBS & LBFS Panel (24kV)
JPL1-0.4 Low Voltage Switchgear Of Withdrawable Type
JPL2-0.4 Intelligent Low Voltage Switchgear
JPZ1 DC Power Supply Panel
