Brand:JP
Model:-
MOQ:-0 -
Applications

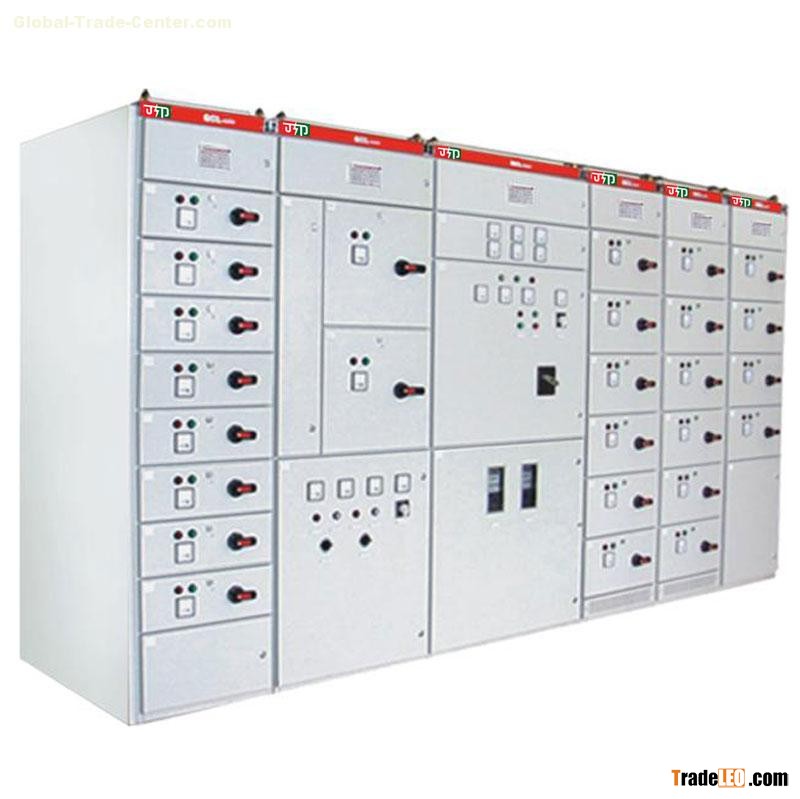

The MNS series Low-voltage switchgear system is suitable to all the power generation, power distribution and power application industries such as :
Main/assistant power cabinet and distribution cabinet
Motor power supply and motor control center
Open or close loop control system electronic cubicle
Specifications
| Rated insulated voltage | V | 690, 1000 |
| Rated voltage | V | 400, 690 |
| Rated frequency | HZ | 50 |
| Rated busbar current (horizonal) | A | 1000-6300 |
| Rated busbar current (vertical) | A | 400-2000 |
| Rated shor-time withstand current(horizonal) | KA | 50 , 65 , 100 |
| Rated shor-time withstand current(vertical) | KA | 30 , 50, 80 |
| Rated peak withstand current(horizonal) | KA | 105, 143, 220 |
| Rated peak withstand current(vertical) | KA | 63, 105, 176 |
| Protection level | | IP40 IP41 IP43 |
Our Product Range
Model No. Description
JPG1-12 SF6 Compact Gas Insulated Switchgear C-GIS (12kV)
JPG1-40 SF6 Compact Gas Insulated Switchgear C-GIS (40.5kV)
JPU1-12 SF6 Ring Main Unit RMU(12kV)
JPW1-12 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (12kV)
JPW2-12 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (12kV)
JPW2-40 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (40.5kV)
JPF3-12 Air Insulated Switchgear Of Fixed Type (12kV)
JPF2-12 SF6 Load Break Switch And Load Break Fuse Switch LBS & LBFS Panel (12kV)
JPF2-24 SF6 Load Break Switch And Load Break Fuse Switch LBS & LBFS Panel (24kV)
JPL1-0.4 Low Voltage Switchgear Of Withdrawable Type
JPL2-0.4 Intelligent Low Voltage Switchgear
JPZ1 DC Power Supply Panel
