Brand:JP
Model:-
MOQ:-0 -
General

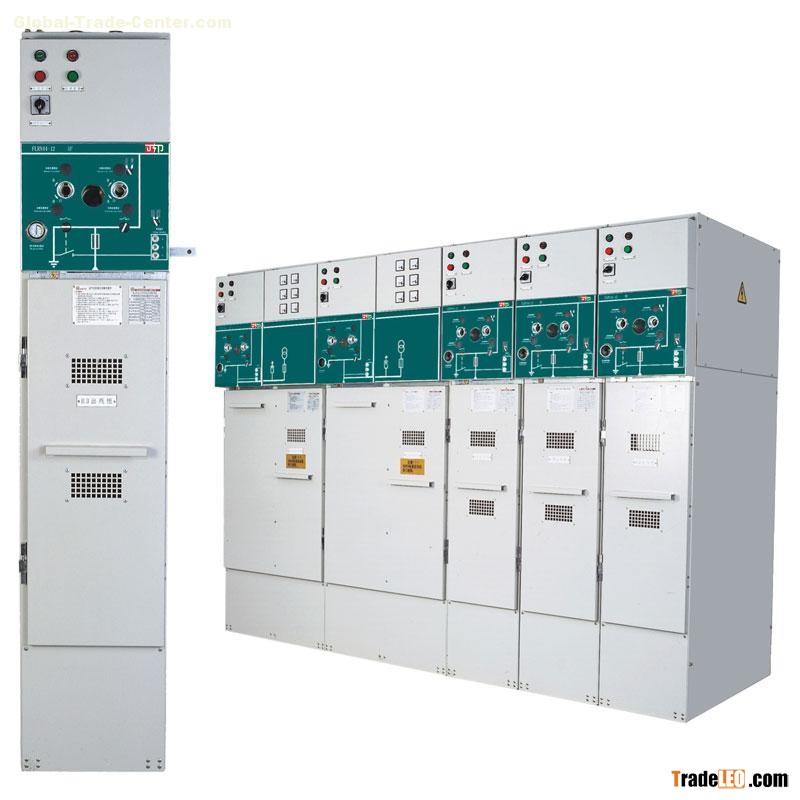

JPF2 fixed type metal-enclosed switchgear assembled from modular elements of SF6 insulated switch-disconnector, SF6 switch-fuse combination or vacuum circuit-breaker, in compliance with IEC 298, IEC 420 standards.
Applications
It is suitable for switching of load current, and controlling the network. It is widely used in medium voltage public distribution systems, high/low voltage prefabricated substation and ring main units.
Specifications
| Rated voltage | KV | 24 |
| Rated busbars current | A | 630 |
| Rated feeder current | A | 630 |
| Rated peak withstand current | KA | 50 |
| Rated short-time withstand current 2s | KA | 20 |
| Cubicle dimension | mm | W375(500, 750)*D900*H1900 |
Our Product Range
Model No. Description
JPG1-12 SF6 Compact Gas Insulated Switchgear C-GIS (12kV)
JPG1-40 SF6 Compact Gas Insulated Switchgear C-GIS (40.5kV)
JPU1-12 SF6 Ring Main Unit RMU(12kV)
JPW1-12 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (12kV)
JPW2-12 Air Insulated Switchgear With Withdrawable Vacuum Circuit Breaker (12kV)
