Brand:CORE POWER
Model:XR(X/L)C1
MOQ:100 Sets
Summary:

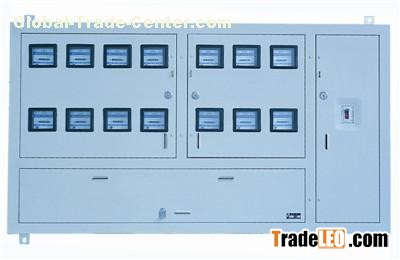

l XR(X、L)C1 series low-voltage electric power measuring box is one of the measuring power distribution equipment widely used in the low-voltage distribution system.Due to its easy installation,beautiful appearance,various structure,easy maintenance,over the years by many user’s consistent high praise.
l This product is suitable for single phase/three -phase power distribution system of enclosed type low-voltage electric power metering with power system of AC50HZ,rated voltage 220,220/380v,380v.
l This product has got the certificate of 《licence for manufacturing measuring instruments of the People’s Republic of China》.
l It accords with GB 7251.3 GB/T 16934 and power supply bureau standards such as container type electric power measuring box acceptance specification requirements.
Our company is one of the designated manufacturer of low voltage electric power measuring box,it’s transmit unit of Fuzhou power bureau and linkage unit of 95598 electricity services
Product features:
l Unit measuring instruments,the main switch unit,the user switch unit,each unit is equipped with independent structure and door,at the same time distiguish with clapboard struture and isolation;
l All electrical components,parts and accessories shall be installed on the mounting plate,whole installation using galvanized processing,and can disassenmble as a whole;
l Product struture meet the safe operation,accurate measurement,easy operation monitoring and test maintenance ,moreover preventing electricity-stolen requirements;
l Outlet and inlet of products has hole and has prevent scratch wire insulation sealing ring.Its installation is firm,and in good condition,suitable,knock off the insulation sealing ring meet the requirements of protection class;
l Product has window used to observe running operation and status of watt-hour meter ;
l On the door with a zipper,door can be freely opened and closed witnin 90 degrees.In the process of opening and closing door,switch and measuring instruments do not hit,damaged and bruised.
