1.1Functions

1 Breakdown test of user-defined
2 Proof test
3 Calibration interface for customers
4 Uploading data to PC and making word report automatically.
5 Result print

1.2Technique index

1 Output voltage: AC 0~80KV

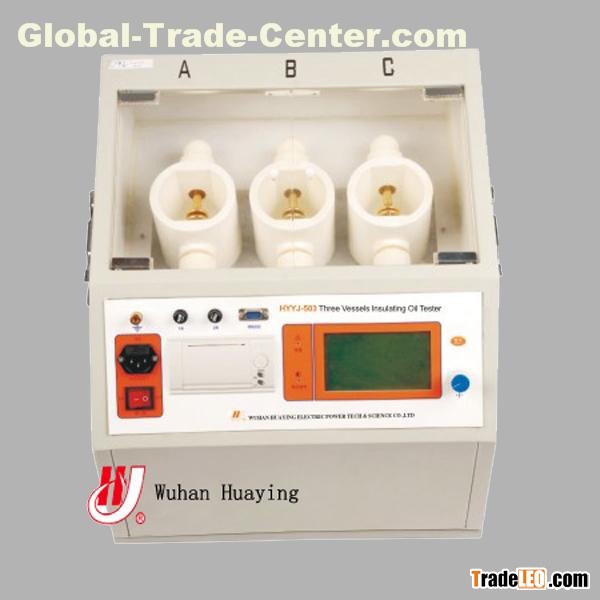

2 Three vessels test at the same time
3 Rate of voltage rise: 2KV/s±10%
4 Test error: 3%RDG+0.3%FS
5 Test times setting: 1-6
6 Mixing time setting: 0~99 second
7 Waiting time setting: 0-9 minute 59second
8 Maximum storage capacity: 50 groups of test data
9 Test standards: IEC60156
10 Display: 256´128 LCD
11 Input voltage: AC 220V±10% 50Hz/60Hz
12 Environment temperature: 0-50℃
13 Relative humidity ≤80%RH
