Brand:Huaying
Model:HYHL-III
MOQ:-0 -
Send Inquiry
| Product model: HYHL-100A/HYHL-III | ||||||
| Product brief introduction: | ||||||
| Contact resistance tester output DC 100A current to test the contact resistance | ||||||
| It is designed according to IEC62271. | ||||||
| The main application of the tester is measurement of circuit breaker contact resistance. | ||||||
| All the test results of the tester could be print by the micro-printer which is integrated in the tester. | ||||||
| Also all the test results saved in the tester could be upload to PC computer and then convert to MS WORD document. |
Product technique index:
1. Measurement range: 0-1999.9 μΩ
2. Resolution:0.1 μΩ
3. Test current: DC 200A/100A for different selection
4. Maximum error< 0.5 %RDG+0.05%FS
5. Display mode: LCD
6. Save no more than 100 groups of data
7. RS232 computer interface
8. Rated power supply:AC220V
9. Size: 340 × 280 × 210mm3
10. Environment temperature:-10 ℃~+40 ℃ Relative humidity<80%

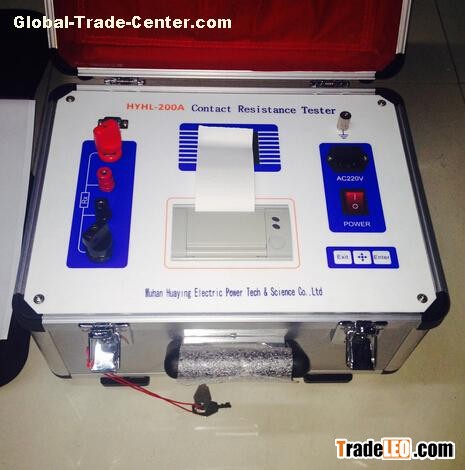

Product picture:100A 200A same panel design
