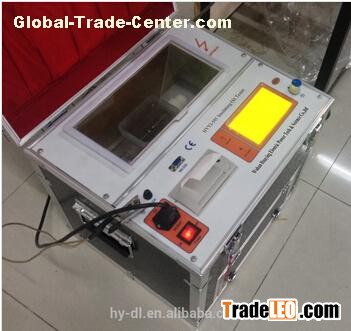

Model: HYYJ-501

Insulating oil tester functions:

1 Transformer oil dielectric strength tester:

1 Breakdown test of user-defined

2 Proof test

3 Calibration interface for customers

4 Uploading data to PC and making word report automatically.

5 Result print

Insulating oil tester technical index:

1 Output voltage: AC 0~80KV

2 Rate of voltage rise: 2KV/s±10%

3 Measuring precision: 3%RDG+0.3%FS

4 Test times setting: 1-9

5 Mixing time setting: 0~99 second Waiting time setting: 0-9 minute 59second

6 Maximum storage capacity: 100 groups of test data Test standards: IEC60156

7 Display: 256*128 LCD

8 Rated power supply: AC 220V±10% 50Hz/60Hz

9 Environment temperatures: 0-50°C Relative humidity ≤80%RH
