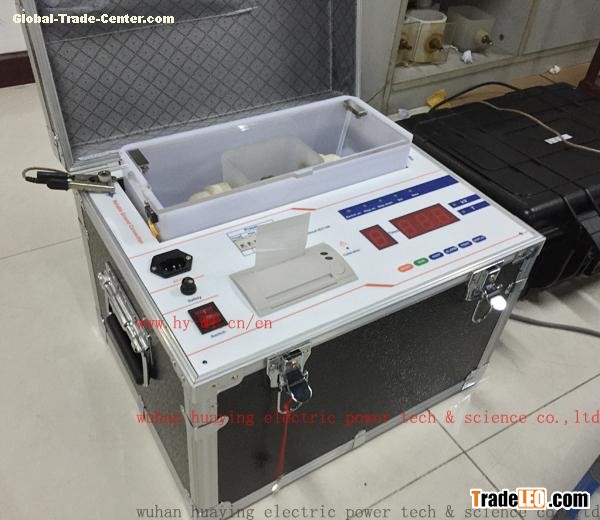

Dielectric oil tester functions:

1 Breakdown test of user-defined
2 Proof test
3 Calibration interface for customers
4 Result print

Insulating oil tester technical index:

1 Output voltage: AC 0~80KV
2 Rate of voltage rise: 2KV/s±10%
3 Measuring precision: 3%RDG+0.3%FS
4 Test times setting: 1-9
5 Mixing time setting: 0~99 second
6 Waiting time setting: 0-9 minute 59second
7 Maximum storage capacity: 100 groups of test data
8 Test standards: IEC60156
9   Display: LED
10 Rated power supply: AC 220V±10% 50/60Hz
11 Environment temperatures: 0-50℃
12 Relative humidity ≤80%RH
13 Size: 420mm´325mm´300mm
14 Weight: 28kg
