Brand:Bangzhao
Model:-
MOQ:-0 -

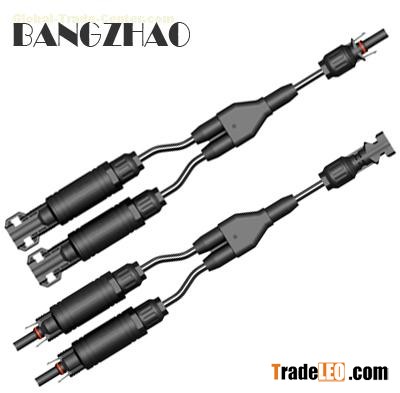

High Quality Y Type Solar Branch Connector with Fuse
| Product No. | Y2FA2 |
| Rated voltage | TUV 1000V DC / UL 600V DC |
| Rated current | 1~30A |
| Suitable cable cross sections | 2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG |
| Terminal size | Φ4.0mm |
| Test voltage | DC 8KV 1min |
| Pollution degree | 2 |
| Protection class | Class II |
| Terminal Material | Tinned copper |
| Contact resistance | ≤ 5mΩ |
| Insulation Materials | PPO |
| IP rating | IP67(IEC 60529) |
| Pull-out force | ≥ 50N |
| Insertion Force | ≤ 50N |
| Test temperature | -40ºC~ +85ºC |
| Flame Class | UL94V - 0 |
Our Service:
1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l Once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer's expense.
