Brand:Bangzhao
Model:-
MOQ:1 Pieces

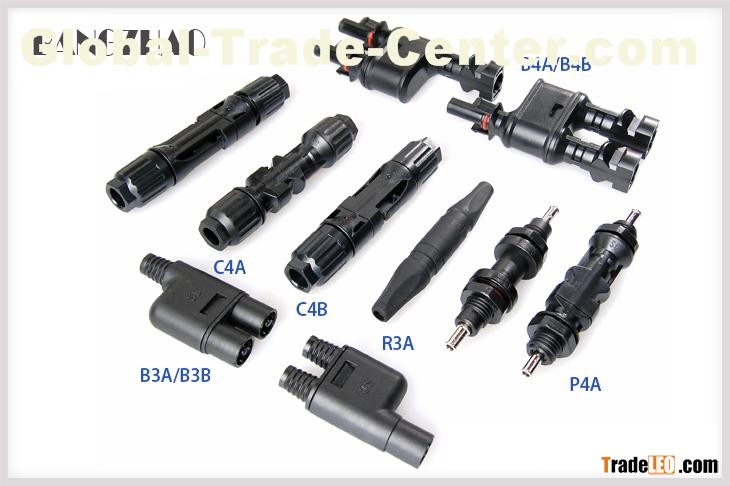

10 mm2 PV module cabel connector for solar power system
Specialty:
With the capacity of anti-aging and anti-ultraviolet radiation;
To meet the using requirements under bad outdoor conditions;
Can meet different specifications of the cable ,and accept customized length of cable according to the customers requests;
Cable connection using riveting and confining means;
Male and female first mating convenient, without the help of other tools;
| Main parameter | |
| Rated current : 30A | Insulationg material: PPO |
| Ambient temperature range: -40~+90° C | Flame class: UL94-V0 |
| Safety class: II | Shell Protection degree: IP67 |
| Contact material: Copper,Tin Plated | Test voltage: 6KV(TUV50Hz.1min) |
| Insertion force: ≤ 50N | Withdrawal force: ≥ 50N |
| Contact resistence: 0.4mΩ | Test voltage: 6000V(TUV50Hz,1min) |
| Connecting System: Crimp connection | Pin dimensions: Φ4.0mm |
Remarks:
Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;
We can provide the cables as well as connectors linked with the cable;
We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;
1.Quality:
l Bangzhao sends all the items with outgoing quality inspection report.
l We guarantee 100% good quality when the products are sent out of factory.
2.Shipping:
l Bangzhao ship to world wide;
l We ship the goods by the fastest way of EMS,UPS,DHL and TNT,reaching most countries within 7 days.
3.Return Policy:
l once we shipped the products,our after-sale service will send you the tracking number;
l If your item is not as described or faulty when you receive it,we will replace it for you with no additional charge.
l If the item is found non-defective,the item will be sent back to the buyer at buyer’s expense.
10 mm2 PV module cabel connector for solar power system
