Brand:wellsee

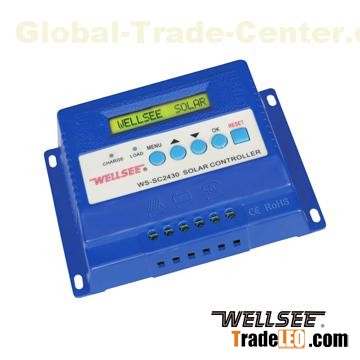

Model:WS-SC2430
MOQ:30 Sets
Send Inquiry
Functions: Intelligent three stage charging mode: constant current charge→ constant voltage and limited current charge→ purling current floating charge . 1.CPU control, LCD display2.Automatic recognition of input voltage • Applicable to various types of durable batteries3.Micro processing controller Pulse Modulation Wide-frequency (PWM) charge4.low voltage cut-off can be set /resuming connection of the DC output of the load port5.Temperature sensor for charging a battery in compensation6.Protective circuit of PV from reverse-charging.7.Overload protection8.Overcharge protection9.Short circuit protection10.reverse discharge protection11.Reverse polarity connection protection12.Thunder protection13.Low voltage protection14.LCD display parameters in turn Technical Index: Model WS-SC2430 20A WS-SC2430 25A WS-SC2430 30A Rated voltage 12V/24V Automatic voltage recognition Max Load Current 20A 25A 30A Input voltage range 12V~20V / 24V~40V Length≤1mCharge loop drop <0.25V Length≤1mDischarge loop drop <0.05V Over voltage protection 17V / 34V Floating mode Full charge cutThree stage mode Full charge cut 13.7V / 27.4V 14.2/28.4V Low voltage cut 10.5~11V / 21V~22V Temperature compensation -3mv/°C/cell No load loss ≤20mA Max wire area 4mm2 Ambient temperature -35°C—+75°C
