High Temperature Industrial Contactless Read Write 13.56MHz HF RFID metal Tag Sticker

Contactless read/write on-metal RFID tag MT011 is a kind of industrial mount-on-metal rfid tags. It has been widely used in the asset tracking applications, where under the metallic environment. Besides, it can support the highest operating temperature of 100 and longest reading / writing range of 15cm.

This MT011 can be personalized with printing and numbering.

Applications:

Gas bottle tagging, metal Asset Management, Army Gun Management, metal Mould Management, Auto-Lock Management, Car Management, and so on

Specifications:

1.      Type: Contactless R/O or R/W

2.      Operating Frequency: LF(125KHz) or HF (13.56MHz)

3.      IC Available at 125KHz: EM4102, EM4100, EM4001, TK4100, GK4100

4.      IC Available at 13.56MHz: I-CODE(ISO 15693-3), Mifare® Ultralight (ISO 14443A), Mifare®1K  (ISO 14443A), Mifare®4K  (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

5.      Available IC Data Sheets as PDF Download

EM 4102 (125 KHz, 64 bit, R/O) –

http://www.smart-rfid-tag.com/EM4102_Data_Sheet.pdf

I- Code (13.56 MHz, 1024 bit, R/W, ISO/IEC 15693) –

http://www.smart-rfid-tag.com/I_Code_Sli_Data_Sheet.pdf

Mifare 1 S50 (13.56 MHz, 1K Byte, R/W, ISO 14443 A) –

http://www.smart-rfid-tag.com/MF1_S50_Data_Sheet.pdf

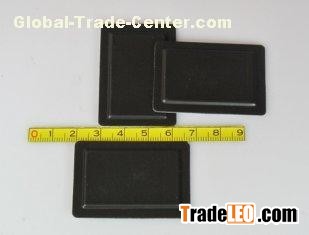

6.      Size: 48mm×33mm×1.5mm

7.      Reading Distance: Up to 12cm

8.      Material: PVC / Special Magnetic Material / 3M® Glue
