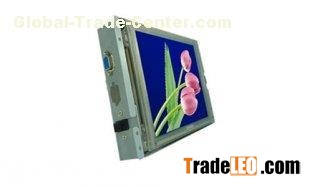

8.4 Inch 800x600 Pixels 6 bit + FRC Color AC 100~240V 6.4W Industrial Touch Screen Monitor
| Model Name | AMG-08OPFY03T1 |
| Viewable Size Image | 8.4" |
| Active Display Area (mm) | 170.4(H)x127.8(V) |
| Pixel Pitch (mm) | 0.213(H)x0.213(V) |
| Number of Pixels | 800x600 |
| Contrast Ratio | 250:1 |
| Display Color | 262, 144(6 bit + FRC) |
| Brightness (CD/m^2) | 350CD/m^2 |
| Viewing Angle (CR >=10) | 130/110 |
| Synchronization Range | 20~75Hz |
| Recommended Resolution | 800x600@60Hz, 75Hz |
| Signal Connector | 15 pin D-sub |
| Power Source | AC 100~240V, Universal, ±10% |
| Power Consumption | 6.4W typical, normal operation |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
| Optional Video Input | No |
| Optional DVI Input | No |
| Optional Touch Screen | Resistance |
|
|
|
