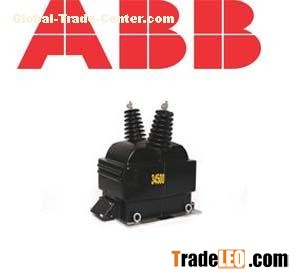

abb voz-75 Pri 7200/7200Y sec120v transformer

Primary    Secondary   Winding  IEEE                 Rated           Thermal         Style

Voltage    Voltage     Ratio    Metering Accuracy    Voltage Factor  Rating @ 30°C  Number

2400/4160Y 120         20:1     0.3 W, X, M, Y, & Z  1.1             1500           E-7525A89G01  4200/7280Y 120         35:1     0.3 W, X, M, Y, & Z  1.1             1500           E-7525A89G02  4800/8320Y 120         40:1     0.3 W, X, M, Y, & Z  1.1             1500           E-7525A89G03  7200/7200Y 120         60:1     0.3 W, X, M, Y, & Z  1.1             1500           E-7525A89G04

Standards

This unit meets all applicable IEEE and NEMA standards and can  be made to meet other standards, such as CSA or IEC, as requested.
