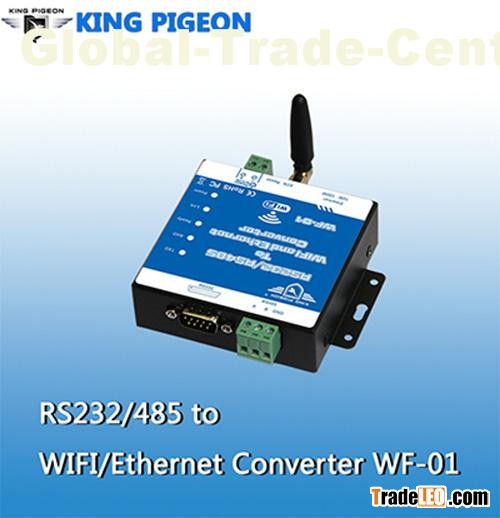

Name:Serial to Wifi/Ethernet Converter (RS232/485+RJ45)

Model:WF-01

 WF-01 is a wireless networking router, which is used for project of RS232/RS485 serial equipment to WIFI or Ethernet networking.

WF-01 provides a serial port to WIFI function, can be RS-232/485 converted into a TCP/IP serial network interface, RS-232/485 serial port and WIFI/ Ethernet bidirectional data transparent transmission.The serial device can transfer the data to TCP/IP network interface connect to the network for data communication, communication extended the range to serial device greatly!

 1.Can use as a Router;

2.Support Hardware AP, HTTPD Client and WEB IO;

3.Suport TCPB Function;

 4. Fast Access WiFi;

5.Support  hardware  flow  control  (RTS/CTS)  RS232  interface,  male  mouth(needle)  consistent  with computer pin definition;

  6.RS232 RS485 automatic switching;

7.Support Webpage Configuration；

8.RJ45 network connection, support wired Ethernet transmission;

9.Rich status indicator light: Power/Ready/link/RXD/TXD;

 10. Reload button, do not worry incorrect settings(in working status, press the button 3s then it load to default settings and automatic restart);

 11. Design with positioning hole, convenient installation;

12.Highest support baud rate 460800 bps;

13.Optional TCP Server/TCP Client/UDP Client/ UDP Server mode, the TCP Server mode can support up to 32 Client connection;

  14.Multiple applications for data transmission from wired to wireless.
