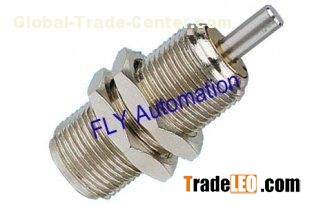

Needle Cylinder CJP type with bore 6mm, 10mm, 15mm
| Bore(mm) | 6 | 10 | 15 |
| Working Medium | Air | ||
| Motion Pattern | Double action / Single Action(Drawing-in Type) | ||
| Ensured Pressure Resistance | 10.5kgf/cm2(1.05Mpa) | ||
| Max.pressure | 7kgf/cm2(0.7Mpa) | ||
| Min.pressure | 2kgf/cm2(0.2Mpa) | 1.5kgf/cm2(0.15Mpa) | |
| Operating Temperature Range | 5~+60 | ||
| Buffering | NO | ||
| Margin of Stroke Error(mm) | 1 | ||
| 0 | |||
| Port size | M5×0.8(Panel mount Type ) | ||
| Bore(mm) | A | B | C | E | F | φG | H | K | MM | NN | R | S | W | Z | Q | ||||||
| 5st | 10st | 15st | 5st | 10st | 15st | 5st | 10st | 15st | |||||||||||||
| 6 | 7 | 12 | 13.9 | 6 | 12.5 | 19.5 | 26.5 | 8.5 | 9 | 3.5 | M3×0.5 | M10×1.0 | 9 | 18.5 | 22.5 | 32.5 | 3 | Contact Infomation
