Brand:Grewin
Model:GWTV
MOQ:50 Pieces

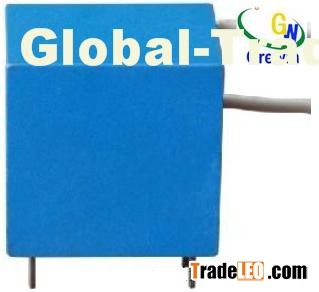

The following is our detailed information of pcb mounting vt/miniature toroidal core voltage transformer Input 220V Output 0.1V 0.333V 3.53V 7.07V for power monitoring
| Toroidal Core VoltageTransformer(specifications) | |
| Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
| Interior Insulation | Epoxy Encapsulated |
| Isolation Voltage | 2500 Vrms for 1 minute |
| Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
| Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
| Rated Load Resistance | 100K Ohms |
| Operating Temperature | -25 to +55℃,-40 to +85℃optional |
| Frequency | 50 to 400 Hz |
| Accuracy Class | defined in IEC 60044-2 Part 2 Voltage Transformers Class 0.1 |
| Certification | RoHS Compliant |
| Toroidal Core Voltage Transformer(features) |
| Low cost |
| More than 30 standard sizes |
| Non-symmetrical mounting pattern |
| Toroidal Core Voltage Transformer(applications) |
| For applications that require exceptional accuracy with minimal phase angle error |
| Applications would include Voltage,power and energy monitoring devices |
The following is the designing model.
The following is the parameter of pcb mounting vt/miniature toroidal core voltage transformer Input 220V Output 0.1V 0.333V 3.53V 7.07V for power monitoring
