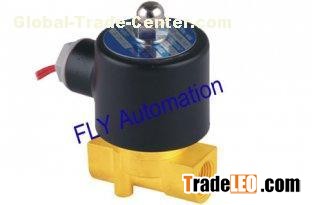

24V 4.0mm Orifice Unid 2 Way Brass Water Solenoid Valves 2W040-10
| Ordering Code | 2W025-06, 08 | 2W040-10 |
| Acting Type | Normally Closed | |
| Jiont Thread Size | 1/8" , 1/4" | 3/8" |
| Orifice | 2.5mm | 4.0mm |
| CV value | 0.23 | 0.6 |
| Working pressure | Water, Oil:0.150.5 Mpa , Air, gas: 0.150.85Mpa | |
| Max.pressure | 1.05 Mpa | |
| Temperature() | -5-80 or -5-130 |
| Valve body | Zinc Alloy, Brass |
| Seal | NBR, EPDM or VITON |
| Medium | Air, water, Oil, Gas |
| Voltage | AC:24V, 36V, 48V, 110V, 220V 380V DC:12V, 24V, 36V, 48V, 110V, 220V, 380V |
| Voltage range | ±10% |
