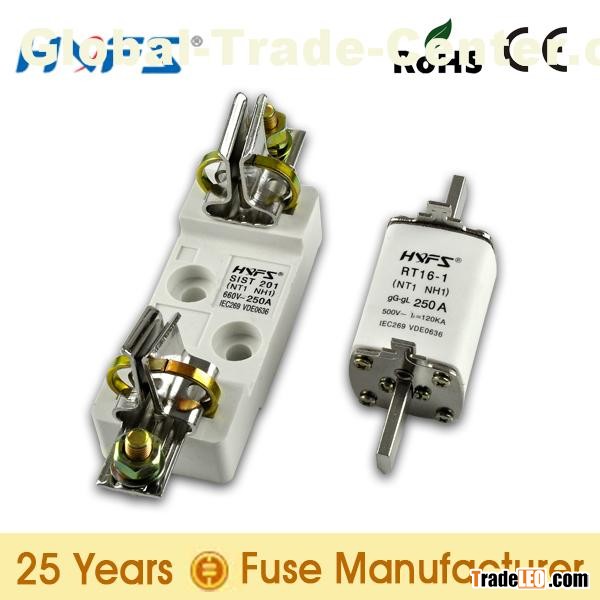

RT16(NT)Series knifecontactor fuse

types of fuse

Scope of application
It is applicable indusrtial electrial distributing installation of AC50Hz(or60Hz)rated voltage 500/690V and 400V,rated current 1250A and below.It is provided with the function of the protection against overload or short Circuit.

Scope of application

It is applicable indusrtial electrial distributing installation of AC50Hz(or60Hz)rated voltage 500/690V and 400V,rated current 1250A and below.It is provided with the function of the protection against overload or short Circuit.

Type and meaning

Main technical parameter

Type	Rated voltage	Rated current		Rated breaking capacity			Rated power dissipation of fuse-link	Weight of base	Weight of fuse-link
		base	Fuse-link	500V	690V	COSφ
RT16-00	500V 690V	160	2,4,6,8,10,12,16,20, 25,32,40,50,63,80,100	120	50	0.1~0.2	≤12	200	170
			125,160		-
RT16-0		160	2,4,6,8,10,12,16,20,25, 32,40,50,63,80,100		50		≤25	300	280
			125,160		-
RT16-1		250	80,100,125,160,200		50		≤32	700	450
			250		-
RT16-2		400	125,160,200,250,315		50		≤45	1150	660
			400		-
RT16-3		630	315,400,500		50		≤60	1280	850
			630		-
RT16-4	400V	1250	700,800,1000,1250	400V 100kA			≤110	3400	2480

Outline and installation

Main technical parameter
