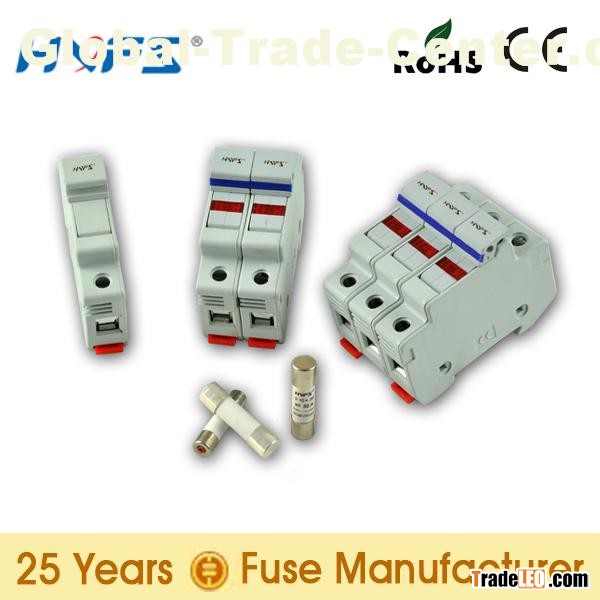

RT18 Series cylinder cap fuse

Scope of application
It is applicable distributing equipment in indusrtial electrial installation of AC50Hz(or60Hz) rated voltage 500V ,rated current 63A and below.against damage due to overload or short eircuit.

Scope of application

It is applicable distributing equipment in indusrtial electrial installation of AC50Hz(or60Hz) rated voltage 500V ,rated current 63A and below.against damage due to overload or short eircuit.

Type and meaning

Main technical parameter

Type	Rated voltage	Rated cuttent		Rated breaking capacity		Rated power dissipation of fuse-link	Weight of Holder	Weight of fuse-link
		Holder	Fuse-link	l1 kA	COSφ
RT18-32	500V	32	2,4,6,8,10,12,16,20,25,32	63 100	0.1~0.2	≤3	82	8
RT18-63		63	2,4,6,8,10,12,16, 20,25,32,40,50,63			≤5	206	20
RT18A-32		32	2,4,6,8,10,12,16,20,25,32			≤3	82	8
