0.1 0.2 0.5 accuracy single turn primary ct
Our main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer

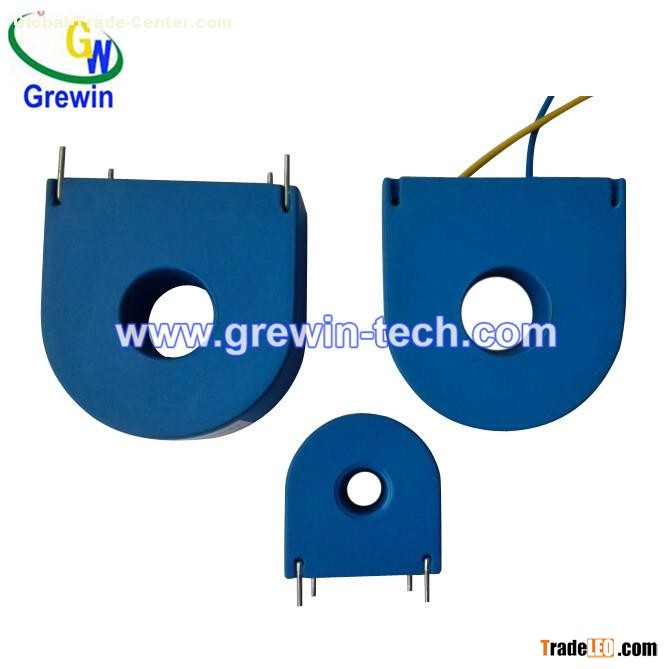

Pic of product
| Single Turn Primary Mini Current Transformer(specifications) | |
| Exterior Material | PBT Resin UL flame retardant rating 94-V0 |
| Interior Insulation | Epoxy Encapsulated |
| Isolation Voltage | 2500 Vrms for 1 minute |
| Dielectric Resistance | 1000 M Ohms @ 500 Vdc |
| Surge Withstand | 5000V(1.2/50μs standard shock wave)optional |
| Rated Load Resistance | 100K Ohms |
| Operating Temperature | -25 to +55ºC,-40 to +85ºCoptional |
| Frequency | 50 to 400 Hz |
| Accuracy Class | defined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2 |
| Certification | RoHS Compliant CE Approved |
| Single Turn Primary Mini Current Transformer(features) |
| Low cost |
| More than 50 standard sizes |
| Non-symmetrical mounting pattern |
| Toroidal Silicon steel and Nickel Alloy available |
| Single Turn Primary Mini Current Transformer(applications) |
| For applications that require exceptional accuracy with minimal phase angle error |
| Applications would include Voltage,power and energy monitoring devices |
| Part Number | Rated Input Current (A) | Turn Ratio | Frequency ( Hz ) | Secondary Burden Resistance (Ohms) | Accuracy Class | Outline Dimensions (mm) |
| GWTA1111 | 5~30 | 1000:1 2000:1 2500:1 | 50 to 400 | ≤200 | 0.1 0.2 0.5 | ID-L-W-H 7.0-22.0-18.0- 23.0 |
| GWTA1311 | 5~80 | ≤800 | 0.1 0.2 0.5 | ID-L-W-H 8.0-25.3-18.0- 30.0 | ||
| GWTA1411 | 5~80 | ≤800 | 0.1 0.2 0.5 | ID-L-W-H 9.0-31.5-20.5- 33.5 | ||
| GWTA21A11 | 5~50 | 1000:1 2000:1 2500:1 3000:1 | 50 to 400 | ≤200 | 0.1 0.2 0.5 | ID-L-W-H 6.9-25.0-11.6- 26.5 |
| GWTA21B11 | 5~50 | ≤200 | 0.1 0.2 0.5 | ID-L-W-H 6.7-23.5-11.5- 25.0 | ||
| GWTA21CB11 | 5~15 | 1000:1 2000:1 | 50 to 400 | ≤50 | 0.2 0.5 | ID-L-W-H 3.6-18.0-10.0- 19.0 |
| GWTA21CE11 | ≤50 | ID-L-W-H 5.0-17.0-9.2- 16.7 | ||||
| GWTA21CD11 | ≤50 | ID-L-W-H 5.0-18.0-10.0- 19.0 | ||||
| GWTA21C11 | 1000:1 2000:1 2500:1 | ≤50 | ID-L-W-H 4.5-18.0-10.0- 20.0 | |||
| GWTA21CA11 | ≤300 | ID-L-W-H 4.5-19.0-12.5- 19.0 | ||||
| GWTA21E11 | 5~20 | ≤200 | 0.1 0.2 0.5 | ID-L-W-H 5-21-13.5-21.5 | ||
| GWTA21F11 | 5~30 | 1000:1 2000:1 2500:1 3000:1 | ≤200 | 0.2 0.5 | ID-L-W-H 6.7-23.9-12-25 | |
| GWTA22B11 | 5~80 | 1000:1 1500:1 2000:1 2500:1 3000:1 | 50 to 400 | ≤800 | 0.1 0.2 0.5 | ID-L-W-H 8.7-26-17.5- 27.5 |
| GWTA22D11 | 5~100 | ≤1000 | 0.1 0.2 0.5 | ID-L-W-H 9.0-29.5-19.0-30 | ||
| GWTA22E11 | 5~100 | ≤1000 | 0.1 0.2 0.5 | ID-L-W-H 12.8-36.7-14.2- 38.5 | ||
| GWTA2311 | 5~20 | 1000:1 2000:1 2500:1 | 50 to 400 | ≤200 | 0.1 0.2 | ID-L-W-H 5.0-18.8-17.8- 19.5 |
| GWTA23B11 | 5~80 | 1000:1 2000:1 2500:1 3000:1 5000:1 | ≤100 | 0.1 0.2 0.5 | ID-L-W-H 6.0-25.0-21.5- 26.0 | |
| GWTA23A11 | 5~100 | ≤1000 | 0.1 0.2 0.5 | ID-L-W-H 6.0-34.0-22.0- 36.0 | ||
| GWTA32B11 | 5~20 | 1000:1 2000:1 2500:1 | 50 to 400 | ≤100 | 0.1 0.2 | ID-L-W-H 5-17.6-19.3- 17.6 |
| GWTA3311 | 5~80 | 1000:1 1500:1 2000:1 2500:1 3000:1 | ≤500 | 0.1 0.2 0.5 | ID-L-W-H 6.0-28.0-28.0- 22.0 | |
| GWTA34B11 | 5~100 | ≤1000 | 0.1 0.2 0.5 | ID-L-W-H 5.5-34.0-34.0- 23.0 |
