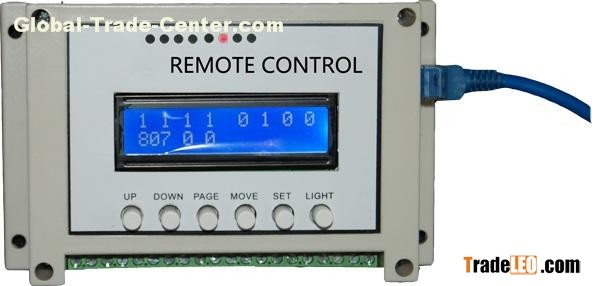

This remote control unit is general unit for any system need remote monitoring and control. It provides 4 DI, 4 DO and 3 AD channels and a webpage interface. And it allows you to control the 4 output relay indirectly from LAN/Internet(*1). When you switch the relay button to on or off on webpage, the real relay on this kit will act following your command. To accomplish the final control on your system, advanced electrical skill and extra connection/modification on your system are necessary.

All the DO,DI,AD status or values will be send to the server and be stored.In this way, you will be able to track the past information of your system. Our specialization in remote monitoring field makes it an ideal tool to meet the demands imposed by the Government, Industry Regulations and Energy retailers as an intelligent method of monitoring energy productivity.

When the remote control unit is connected to a route, an static IP is required. You can get access to the unit by visit the IP on any browser( PC,MAC or Smart Phone). In this situation, the PC or others equipment must be in the same IP segment. But with advanced setting on the route, you can even get access to the unit using a public IP, that means you can control your system any where.

The relay outputs also can be controlled by buttons on the panel.

FUNCTIONS
* 4 Isolated Digital Inputs
* 4 Isolated Digital Outputs( Relay)
* 3 Isolated Analog Channels( 10 bit)
* IO Status and AD Readings Transfer
* Cloud Data Storage
* Live Chart for Analysis
* Full History Data Download
* LAN remote control
* Internet remote control(*1)
* 16*2 LCD Display( with backlight)

OPTIonAL ACCESSARIES
* Waterproof Enclosure
* Solar Power Supply Unit

SPECIFICATIONS
* Operating environment -20 to 60 C (-4 to 150 F), 0 to 90%
* Relative Humidity non-condensing
* Power supply 12V DC
* Data transfer interval 10 minutes
* Relay Output 2A, 250VAC/30VDC
* Measurement 150*90*45mm
* IP rating IP40(Waterproof enclosure: IP65)
