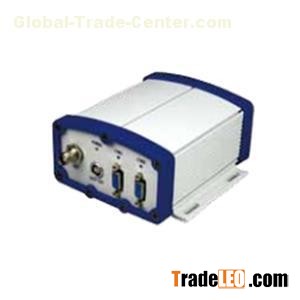

ER-201 BD navigation and positioning receiverER-201 receiver can encapsulate a variety of OEM board. The product has two serial ports which can communicate with external equipment. Receiver has an antenna port, Power input and so on. It is suitable for low-cost, low -power field BDS / GPS positioning system, multi- application RTK, timing etc. This receiver’s frame can package BDM100/651/670/680 -type card, ER-201-AT type use DB9 serialSpecifications:ParameterParameterDimension(excluded antenna socket)141mm×118mm×67mmweight<500gpower dissipation≤5WHorizontal position precision (RMS)<3m (According to the internal packaging board)RTK precision (Horizontal)horizontal : 1cm 1ppm;vertiacl : 2cm 1ppm (internal high precision board)data updating rate>1Hz (According to the internal packaging board)Power suply10～32VDC (recommend 12VDC)Working temperature-40℃～ 80℃Storage temperature45℃～ 85℃humidityRelative humidity5% ～95%, non-condensingInterface type1 antenna inteface (TNC femal)1 power suply interface (LEMO)2 communication interface (LEMO/DB9optiona)1(RJ45, C201-NToptiona)output and RJ45 network port output
