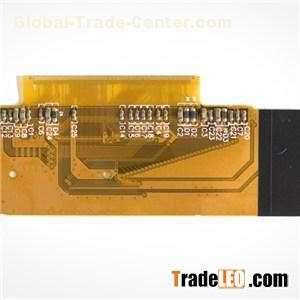

Jetek-Pcb Co.,Limited is one of the leading China flexible pcb assemble manufacturers and suppliers, welcome to wholesale flexible pcb assemble from our factory.product nameFlexible PCB assemble product descriptionBoard material:PolyimideBoard thickness: 0.15mmPCB Layers: 4 layersCopper thickness: 1ozSurface finishing: OSPMask: YellowLegend: WHITEMin line width: 0.10mmMin line spacing: 0.10mmMin hole size: 0.20mmStiffener:YES Product TipsDouble-sided flex circuits are flex circuits having two conductor layers. Theses flex circuits can be fabricated with or without plated through holes, though the plated through hole variation is much more common. When constructed without plated through holes and connection features are accessed from one side only, the circuit is defined as a "Type V (5)" according to military specifications. It is not a common practice but it is an option. Because of the plated through hole, terminations for electronic components are provided for on both sides of the circuit, thus allowing components to be placed on either side. Depending on design requirements, double-sided flex circuits can be fabricated with protective coverlayers on one, both or neither side of the completed circuit but are most commonly produced with the protective layer on both sides. One major advantage of this type of substrate is that it allows crossover connections to be made very easy. Many single sided circuits are built on a double sided substrate just because they have one of two crossover connections. An example of this use is the circuit connecting a mousepad to the motherboard of a laptop. All connections on that circuit are located on only one side of the substrate, except a very small crossover connection which uses the second side of the substrate. Company ProfileWe know almost all electronic engineers got a problem to found a right manufacturer to make PCB prototypes
