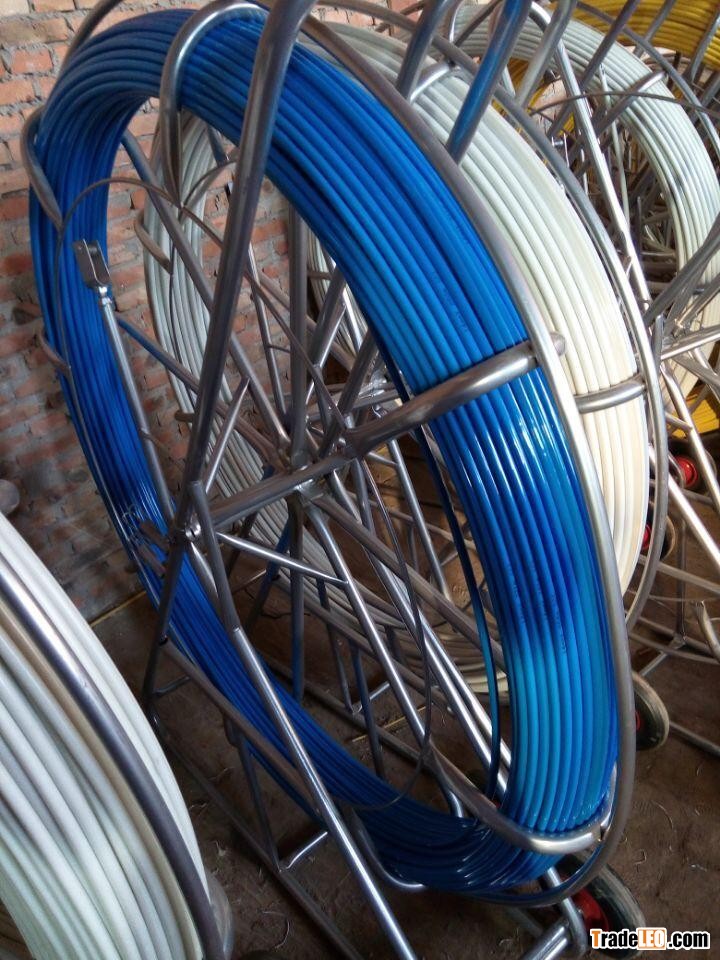

Technical Date of Fiberglass Duct Rodder Specification

Rod Diameter (mm) Φ 4.5-Φ 16

Rod Length (m) 30m~500m

frame Spec. (mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, 420x180x400,etc.

Material: Fiber glass rod inner, Extruded by fiber glass and high strength resin at high temperature

Fiber glass rod outer, High Density polyethylene coating

metal frame: Steel with high-temperature sprayed plastic or hot dip galvanized

Physical Property

Fiber glass content:75-80%

Density > 1.9gr/cm3

Working environment-40° C to +80° C

Minimum Pulling strength 4000N +/-5%

Consistency of rod 137gr/m

Flexural Modulus > 46.500Mpa

Elongation at break 2.5-3%

Min Bending Radius 388mm
