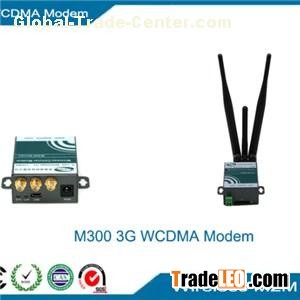

>>| E-Lins Industrial 3G WCDMA Modem E-Lins 3G modems covers 3G WCDMA, 3G CDMA2000 EVDO, 3G TD-SCDMA. 3G WCDMA is the world-wide popular used technology for mobile networks. For single sim 3G WCDMA modem, the main model is M300. Model Sim Slot Quantity Module Quantity Port Others M300 1 1 USB * 1 >>| Hot Spot Built-in 2G/3G industrial cellular modules, insert SIM/UIM card to work directly; Built-in SIM/UIM card slot; Broadband M2M communications SIM failover/standby APN 2G/3G failover for fixed line broadband connections Rapid service deployment applications Support At command USB port GPS support (option) >>| Typical Diagram >>| Specification of Industrial 3G WCDMA Modem Wireless Mobile Networks UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA /DC-HSPA ) GSM EDGE/GPRS Cellular Frequency UMTS/HSPA/HSUPA/HSPA/HSPA /DC-HSPA (WCDMA/FDD) 850/1900/2100 MHz or 850/900/1900/2100Mhz/AWS optional Quad-band EGSM 850/900/1800/1900Mhz Data Bandwidth DC-HSPA : Downlink 42Mbps, Uplink 5.76Mbps; HSPA (H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA (L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps; EDGE: Downlink 236,8 kbps, Uplink 118 kbps; GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps; Notes: the bandwidth is peak value. Real value depends on carrier network support. Interface Antenna 50Ω SMA female interface *3, external detachable; Antenna for Main Cell, MIMO Cell, GPS Led Power indicator Data indicator UIM/SIM 1.8V/3V USB USB 2.0 female Power Power supply DC5V-40V, option is DC5V-50V / DC5V-60V, typical DC9V1A or 12V1A or 12V2A Power consumption Peak: 700mA@ 9VDC Average: 85mA@ 9VDC Idle: 30mA@ 9VDC Software OS Windows; Mac OS; Linux; Android; Other OS with USB port; At command Support at command; Packed with GUI software Physical Operating Temperature Work temperature: -30°C to 70°C option for -30°C to 80°C Storage temperature: -40°C to 85°C Humidity 95% Maximum (Non-condensing) Dimensions Item (L x B x H): 87mm*50mm*23mm Packaging (L x B x H): 102*70*23mm PCBA: 84mm*48mm*20mm Weight 150g (not including accessories and package) Electromagnetic compatibility anlistatig test: Class 3 Radio electromagnetism test: Class 3 Others Warranty 1 Year, can extend up to 5 years Package Contents The M300 Industrial 3G WCDMA Modem USB cable Power Adapter Antenna CD-ROM with Product documentation
