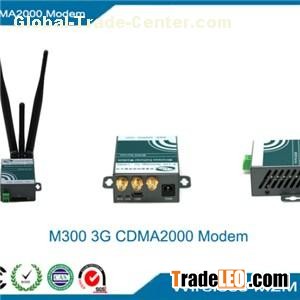

>>| E-Lins Industrial 3G CDMA2000 ModemE-Lins modems mainly focus on 2G, 3G and 4G cellular modems. The 3G covers WCDMA, CDMA2000 and TD-SCDMA. For single sim 3G CDMA2000 modem, the main model is M300. It covers EVDO Rev O, Rev A, and Rev B. ModelSim Slot QuantityModule QuantityPortOthersM30011USB * 1>>| Hot SpotBuilt-in 2G/3G CDMA2000 EVDO industrial cellular modules, insert SIM/UIM card to work directly;Built-in SIM/UIM card slot;Broadband M2M communicationsSIM failover/standby APN2G/3G CDMA failover for fixed line broadband connectionsRapid service deployment applicationsSupport At commandUSB portGPS support (option)>>| Typical Diagram>>| Specification of Industrial 3G CDMA2000 ModemWirelessMobile NetworksCDMA1xCDMA2000 EVDO Rev 0/Rev A/Rev BCellular FrequencyCDMA1x/EVDO: 800/1900Mhz or 450Mhz optionalDataBandwidthCDMA1x: Downlink/Uplink 153.6kbps;CDMA EVDO:Rev B: 14.7Mbps downlink, 5.4Mbps uplinkRev A: 3.1Mbps downlink, 2.4Mbps uplinkRev O: 2.4Mbps downlink, 153.6kbps uplinkNotes: the bandwidth is peak value. Real value depends on carrier network support.InterfaceAntenna50Ω SMA female interface *3, external detachable;Antenna for Main Cell, MIMO Cell, GPSLedPower indicatorData indicatorUIM/SIM1.8V/3VUSBUSB 2.0 femalePowerPower supplyDC5V-40V, option is DC5V-50V / DC5V-60V, typical DC9V1A or 12V1A or 12V2APower consumptionPeak: 700mA@ 9VDCAverage: 85mA@ 9VDCIdle: 30mA@ 9VDCSoftwareOSWindows;Mac OS;Linux;Android;Other OS with USB port;At commandSupport at command;Packed with GUI softwarePhysicalOperating TemperatureWork temperature: -30°C to 70°C option for -30°C to 80°CStorage temperature: -40°C to 85°CHumidity95% Maximum (Non-condensing)DimensionsItem (L x B x H): 87mm*50mm*23mmPackaging (L x B x H): 102*70*23mmPCBA: 84mm*48mm*20mmWeight150g (not including accessories and package)Electromagnetic compatibilityanlistatig test: Class 3Radio electromagnetism test: Class 3OthersWarranty1 Year, can extend up to 5 yearsPackage ContentsThe M300 Industrial 3G CDMA2000 ModemUSB cablePower AdapterAntennaCD-ROM with Product documentation
