IDRFID Technology Co.,Ltd is one of the leading rfid card inlay manufacturers and suppliers, welcome to buy rfid card inlay, racetrack inlay from us.

Product model

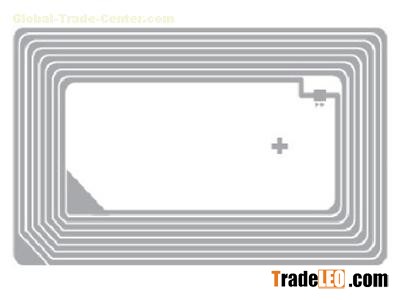

RFID Card inlay

Passive

RFID antenna products

An antenna material

PET substrate + aluminum foil

The antenna

size 45 * 76 mm (0.5 mm)

Adhesive tape size

54 * 85.5 mm (0.5 mm)

Frequency

HF 13.56MHz

Applicable chip

MIFARE Ultralight EV1 /ICODE SLI/MIFARE S50

Conform to the standard

ISO/IEC 14443-A / ISO15693

Thickness

0.07 mm

Weight

0.01 g

Packing

1000 PCS/volume or packaging according to customer requirements

Read distance

distance is 80 mm. But related to label  and legibility of the antenna size.

Storage time

After the date from production under the condition of vacuum packing in the 20 ~ 30 temperature/humidity 20% ~ 60% RH can save a year.

Operating temperature

-25℃ to +80℃

Storage temperature

-30℃ to +85℃

Application

scope identification, warehouse management, library,resource management, access control, electronic payment
