LCD Module 160x160 Mono And Color STN With Backlight

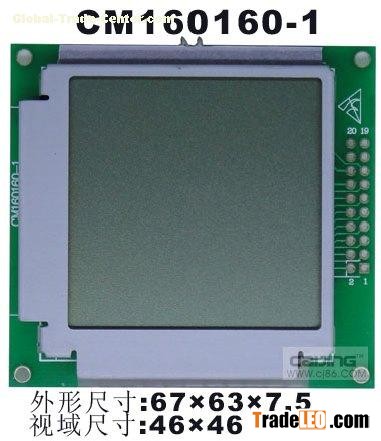

1. Model No.: CM160160-1FLWA
2. DOT matrix: 160x160dots
3. Size: 67*63*7.5mm
4. V. A: 46*46mm
5. Drive method: 1/160 duty, 1/13 bias
6. View angle: 6: 00
7. Display: FSTN
8. Voltage: 3V
9. Controller: 320A
10. TOP: -20~+70 celsius
11. TST: -30~+80 celsius

As 160x160 Dots LCD module, we also have other different size

Model No. Overall size/mm Viewing area/mm Dots size

CM160160-1 67X63X7.5mm 46X46 0.245X0.245
CM160160-2 51.9X51.9X2.1 45.68X45.68 0.245*0.245
CM160160-3 77X73.5X7.8 58X58 0.32X0.32

To know more about us, Pls contact us without hesitation
