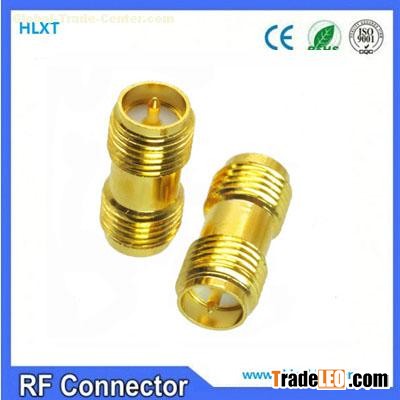

Connect interface: SMA

Connect type: Threaded connection

Install :crimp

Impedance :50Ω

Temperature  range: -65～+165°C

Vibration: MIL-STD-202,Method 213

Military standard: MIL-C-39012

Frequency Range :DC～12.4GH

Working Voltage: 335V max

Withstand Voltage :1000VRMS min

Contact resistance: Center Contact ≤ 3 mΩ/ Outer Contact ≤ 2 mΩ

Insulation resistance ≥ 5000 MΩ

Insertion loss ≤0.15 dB/6GHz

VSWR   Straight for cable≤1.10+0.002f  Right angle≤1.20+0.001f (FOR CABLE) PCB:STRAIGHT :1.3 MAX/RIGHT ANGLE :1.5MAX

Durability(mating) ≥500cycles

Termination: cable / pcb/ bazel

`

MATERIAL & PLATING

Shell: brass gold plated

Contact :pin brass gold plated

Socket: beryllium gold plated

Elastic contact :beryllium gold plated

Insulator :Teflon/PTFE

Crimp ferrule: copper alloy nickel or gold plated

Applicable standard:

MIL-C-39012

CECC22110

IEC61169-15
