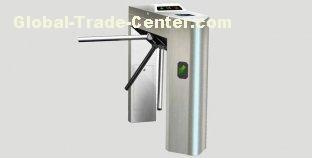

Security Access Control Tripod Turnstile Mechanism , Automatic Turnstile Gate
Description:
Fujica semi-automatic tripod turnstile consists of casing, magnetic force turn plate, reader module, main controller module, direction guide, limit switch etc., can be used for entrance control, applications like apartment, factory, museum, station and ferry terminal etc.. Together with intelligent card reader/writer and management software, they are combined as intelligent tripod turnstile management system, can fulfill the functions like entrance control, time attendance, pedestrian volume control and tolling etc. The equipment opens semi-automatically, Mifare-1, IC, ID and Bluetooth are available to be used with the tripod turnstile.
Technical parameters:
| Power consumption | 50W |
| Housing Size | 1300*280*950 mm |
| Housing material | 1.5--2mm, 304# stainless steel, corosion resistant |
| Drive motor | NA |
| Channel width | 550--600 mm |
| Pass speed | 25 persons/min. |
| Input singal optional | DC12V dry contact/RS485 |
| railing-off against power off | Yes |
| Working enviroment temperature | -30°C to +70 °C |
| Working environments | indoor, outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2, 000, 000 cycles |
System function:
1. Can open the turnstile by two input signals (signals can be input by access controller, buttonor other equipments)
2. Direction guide function, when the turnstile is ready to read card, the yellow l
