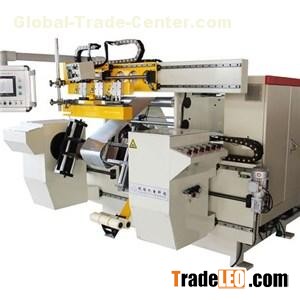

一、Equipment DescriptionCore clamping type foil winding machine is applicable to power transformer and reactor foil coil winding. The coil of foil winding machine takes different thickness copper or aluminum foil strip as conductor,Website:http://www.foil-coil-windings.com, and wide strip insulation materials as layer insulation, to finish winding in coiled in the machine. At the same time, the machine can complete coils’ inside and outside surface wrapping. The form of coil can be round, oval and rectangle etc. This machine can wind coil on the core column with square section directly. There is clamping arm used for square core in winding faceplate and tailstock faceplate.The arm thickness can be adjustable. The adjust method is screw type, with the range 0-350mm. Its width is 0-180mm, which is also suitable for different specification cores. Both winding faceplate and tailstock support faceplate are double servo, and the winding torques at the two ends are same.二、Main Technical ParametersNo.ItemSpecification Parameter1Axial Length600mm2Foil ThicknessCopper foil/ Aluminum foil:0.2-2.5mm3Coil Outer Diameter(Without connection line)Φ6504Cylinder Expansion Rangeφ400-φ5105Coil FormRound/Rectangle/Oval6Winding Speed0-24r/min7Speed Regulation WayParameter Setting8Winding Power4KW 4KW (Double Servo)9Welding WayTIG10Welding Speed0-0.8m/min11Rectify Deviation WayPhotoelectric Sensing Automatic Rectify Deviation12Rectify Deviation Precision±0.5 mm
