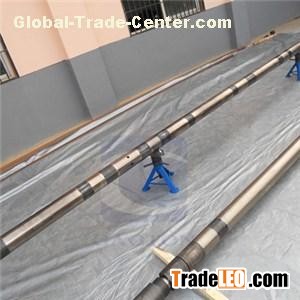

OMNI Circulating ValveOMNI Circulating Valve is a circulating valve which is controlled by the annular pressure. The valve can achieve multiple switches. It is suitable for FUL-FLO formation testing of cased hole, tubing conveyed perforation, perforation, FUL-FLO testing combination and other operations for pipe string pressure test and cycle operation.Technical Parameters--OMNI Circulating ValveSpecifications3 7/8″5″Outside Diameter99mm127.5mmDrift Diameter45mm57mmTotal Length6092mm6555mmWorking Pressure70PMa70PMaWorking Temperature-29℃~ 177℃-29℃~ 177℃Resistance to Tension820KN1600KNInternal Pressure Strength135 MPa148 MPaOuter Pressure Resistance126MPa138 MPaCirculating Port Open Area1526mm2280mmTorque Strength15 KN.m30 KN.mBinding Screw Thread2 7/8″CAS
