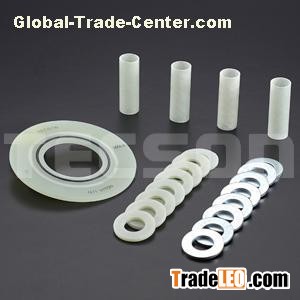

Checking LPG Gasket manufacturers online? Welcome to contact TECSON,Website:http://www.tecsongaskets.com, we are a leading pge gasket, LPG gasket supplier equiped with professional factory.Advantages:The design of LPG incorporated overlapping and offsetting seal grooves. The purpose of this design is to break each layer of laminate within the seal itself there by creating a barrier through which fluid and/or gas cannot migrate. The sealing element can be any elastomeric material as well as more sophisticated Spring-Energized Teflon seals. As a result of this advanced seal design, maintenance free flange isolation and flange face corrosion mitigation are achieved economically.The LPG is available in both full-face (Type E) and ring style (Type F)configurations. Depending upon the sealing element selected, the LPG is rated for most all hydrocarbon and water service applications.Materials:Retainer Material1) G-10 Glass-Reinforced Epoxy (GRE)laminate:Compressive Strength: 65,000 PSI Dielectric Strength: 750-800 VPM Max.Continuous Operating Temp: 300 degrees F (150 degrees Celsius) Water Absorption: .05% Flexural Strength: 65,000 PSI Tensile Strength: 50,000 PSI 2) G-11 Glass-Reinforced Epoxy (GRE) HighTemp. laminate material:Compressive Strength: 50,000 PSI Dielectric Strength: 500 VPM Max.Continuous Operating Temp: 398 degrees F (200 degrees Celsius) Water Absorption: .085% Flexural Strength: 57,700 PSI Tensile Strength: 41,000 PSI Seal MaterialPTFE (Spring-Energized)VitonNitrileEPDMIsolating Sleeve GREMylarNOMEX Isolating Washers GRE - G10/G11Steel Washer ZPS (Zinc plated Carbon Steel)XPS (Xylan coated Carbon Steel) SS (Stainless Steel)
