GSM GSM GPRS Outdoor Alarm & Control System

Power Facility Monitoring Center

Remote Monitoring Your Outdoor Assets Anywhere Anytime!

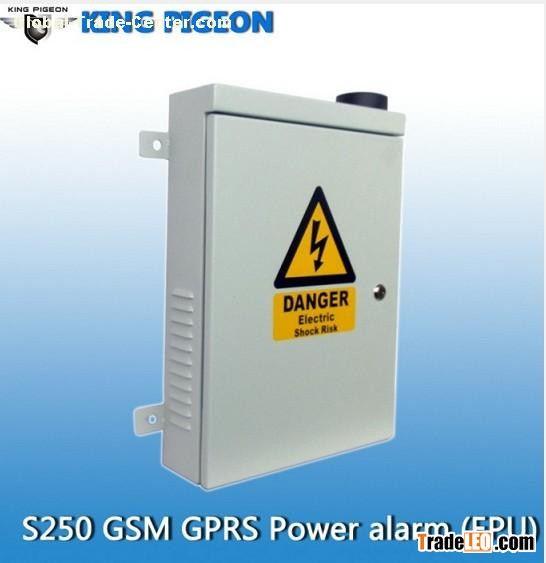

Name: GSM GPRS Outdoor Power Facility Alarm & Control System

Model: King Pigeon S250

The GSM GPRS Power Facility Alarm (GSM GPRS Outdoor Alarm Controller)S250 is an high-technology and specialized wireless anti-theft controller special for electricity power transmission devices and outdoor security protection applications.

The GSM GPRS Power Facility Alarm (GSM GPRS Outdoor Alarm Controller)S250 in-built industry microprocessor inside, with waterproof and weatherproof enclosure, supports solar panel powered up. It provides 2 digital relay outputs (240VAC/10A), 8 digital inputs(Dry contact, Lightning protection, Electrostatic protection, Over current protection.), 3-Phase AC Power Opto-isolated inputs to detect the Electricity A , B, C 3 phase status. It allows you to monitor and control an alarm or remote stations or equipments or machines by SMS(Short Message Service) Or GPRS. It is very suitable for outdoor security protection and Transformer anti-theft requirements, Power Transmission Equipments Burglarproof applications as well as power cable anti-theft and so on. When any cable was cut or loss, or and detector activated, the panel will alert the owner immediately by SMS, or call, as well as to Web based Monitoring Center. also, it will start the siren immediately. The system with intelligent designed, it can distinguish the normally power off and cut cable power off. This is very useful for power device transmission devices.

The GSM GPRS Power Facility Alarm (GSM GPRS Outdoor Alarm Controller)S250 can work with the Web-based Alarm Monitoring center, in order to monitoring lots of units in the countryside by Wireless GPRS Network. The Web-based monitoring center supports Google Map to display the alarm occurrence place directly. Moreover, the user can inquiry the historical record from website at anywhere and anytime. Moreover, the clients can develop its special monitoring center according to the communication protocol directly over wireless GPRS network.

The GSM GPRS Power Facility Alarm (GSM GPRS Outdoor Alarm Controller)S250 supports solar panel, so when the AC Power goes off, it still can keep working well! And when the battery voltage is lower than normal, it will alert the users.

Meanwhile, the GSM GPRS Power Facility Alarm adopt Time-Stamped technology, it will inform the administrator by SMS who is operated it or what occurrence. This is very useful for operation management.

>>>>>>>S250 Remote GPRS Monitoring Suitable for:

1. Electricity transformer and Cable anti-theft application;

2. Electrical Power Unit (EPU) Monitoring and Anti-theft applications;

3. Power Plant, transmission Substation, power towers;

4. Distribution Grid, transmission grid, power substation;

5. The switch tower and the main transformer;

6. Outdoor Security Alarm System applications;

7. Supervision and monitoring alarm systems;

8. Outdoor substations, e.g. Mobile tower, field substations and so on;

9. Outdoor Pumping Stations;

10. Transformer stations;

11. Control room application, etc. .

>>>S250 Outdoor Alarm & Controller Features:
>>GSM/GPRS Data Transmission, no distance limitation;

>>Lighting protection design;

>>Weather-proof design, with temperature compensation function for high/low temperature, waterproof for outdoor applications;

>>Program by USB Port or SMS Commands or GPRS from Web based Monitoring Center;

>>Supports Arm or Disarm by SMS or Web based Monitoring Center;

>>Power on by 220VAC from any phase of A/B/C;

>>Supports Solar Panel powered on as well as includes internal rechargeable battery that can last 24hours,when battery with low voltage will alert user by SMS;

>>Supports 8 digital inputs(NC/NO) for sensors, also supports EOL mode to prevent cut sensor wires and sensor disconnection;

>>Supports 2 output relays(250V/10A), the output relay is programmable to different alarm source;

>>Can send to 6 SMS alarm numbers, distinguish which phase and with input occurrence alarm;

>>Supports two way voice communication;

>>Supports external siren, the siren working time is programmable from 0-10minutes;

>>Supports operation logs to distinguish who operated it at what time;

>>Supports automatically report to monitoring center and users from 0-240Hours;

>>Supports time stamp for events and operations;

>>Supports GSM interface and GSM Jammer alarm function;

>>Supports 1 Web based Monitoring Center.

>>>>>Specifications of King Pigeon S250:

>>Rated Voltage:  AC100~240V/2A

>>Standby current: 5mA

>>Working temperature:  -35℃～+80℃

>>Storage temperature:  -35℃～+80℃

>>Digital input: 8 (Dry contact, NC/NO/EOL)

>>Relay Output: 2 (AC240V/10A)

>>Solar Panel Input Voltage: 12V DC

>>Backup Battery: 3*1200mAH Rechargeable Lithium battery

>>Standby time Approx.36hours (depending on the network condition)

>>Relative Humidity:  10-90%, No condensation

>>GSM Frequency: Quad-Band 850/900/1800/1900MHz

>>GSM Emission Power: GSM850/EGSM900 Class4(2W)

>>DCS1800/PCS1900 Class1(1W)

>>GPRS Protocol: GSM/GPRS Phase2/2+

>>GPRS data: GPRS CLASS12, CS 1,CS 2,CS 3,CS 4.

>>Dimensions: 260mm*180mm*70mm (LXWXH)

>>Net Weight: 2.50Kg

>>>>Standard Package list:

>> S250 Mainframe x1

>>USB Cable x1

>> GSM Antenna X1

>>CD disk (PC Configurator and User Manual) x1

>>EOL Resistors x8

>>Key x2

>>Package Size:W335*D310*H80MM

>>Gross Weight:2.5KG, 2Pcs per carton
