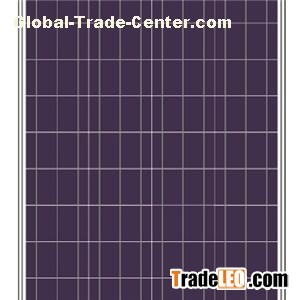

Omnis Power Co.,Ltd is one of the best 80w 85w 90w polycrstalline solar panel manufacturers and suppliers,Website:http://www.czomnispower.com, welcome to buy or wholesale cheap TUV and IEC 80w 85w 90w polycrstalline solar panel from our factory and you are also welcomed to check the price with us. Electrical Characteristics Module Type OP080-P OP085-P OP090-P Rated Power at STC (Pmp) 80W 85W 90W Power Tolerance 0 - 5W Module Efficiency (ηm) 13.7% 14.6% 15.4% Open Circuit Voltage (Voc) 22.4V 22.4V 22.6V Short Circuit Current (Isc) 4.91A 5.22A 5.48A Maximum Power Voltage (Vmp) 17.4V 17.4V 17.6V Maximum Power Current (Imp) 4.60A 4.89A 5.12A Mechanical Specifications Module Dimensions 870 × 670 × 30 mm mm Weight 6.5KG Solar Cells Poly 156 × 89.1 mm Front glass 3.2mm Tempered Glass frame Silver/Black Anodized aluminium alloy Junction Box IP65/IP67 Output Cables 4mm²，600mm Connector NA,but MC4 or MC4 Compatible are acceptable Maximum Snow Load 550kg/m² Maximum Wind Load 200km/h Hailstone Impact Test 80km/h for 25mm ice ball
