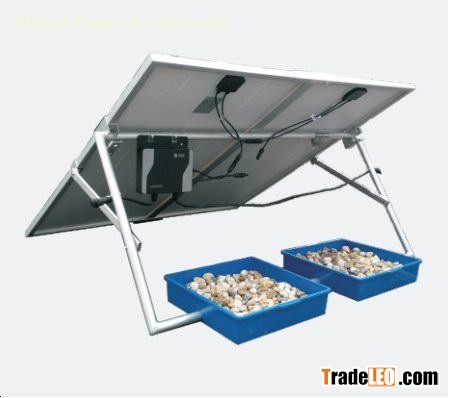

System Overview

This is a single-phase grid-connected photovoltaic power generation product, the power can be directly incorporated into the user-side power for local user uses, additional power can be sold to the grid.

This product is used 300W photovoltaic unit as a standard module, overall package, easy to install. Customers can choose to buy a corresponding number of single modules in parallel according to their own electricity needs.

The system can also choose “agricultural photovoltaic hybrid” base for supporting, to meet the product counterweight function while also planting a variety of plants. Make full use of solar energy resources for power generation, while also enjoying the fun f planting garden.

System Principle

PV system is composed f solar arrays, micro-inverters, distribution boxes, dedicated connection cables and other module parts. Solar arrays and micro-inverters are the key parts of the PV system.

Solar energy is converted into DC current via solar cells then into 50Hz, 220VAC (single phase) output via inverters, then incorporated into grid through cabinet, the power can be a priority for local user, additional electricity can be sold directly to the grid.

Product Overview

Product powder: 300W

Average daily power generation capacity: 0.9~1.5KWh

Solar panel dip angle: 35°

Module mounting area: 2m²(Row spacing>1.5m)

Module weight: 33kg

Packaging volume: 1540*850*170

Wind resistance: >12
