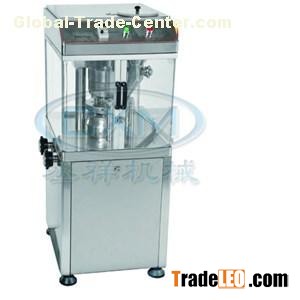

The machine is a subminiature machine that can automatically rotate and continuously press tablet. It is mainly applied to pharmaceutical,Website:http://www.cxtabletpress.com, chemical and some other industries. It can be used in doing research and validating whether the grainy material can be pressed into tablet or not.The unit is suitable for grainy material which powder content(sizing 100Mesh) is not more than 30%. The machine can be used to press round, irregular shape and character print tablets of 4-22mm.Technical Specifications:ModelZP7CDies7Maximum Pressure (kn)50Maximum Diameter of Tablets(mm)22Maximum Depth of Filling(mm)17Maximum Thickness of Tablets(mm)6Turret Speed(r/min)10-30Production Capacity(tablets/hour)12,000Motor (kw)2.2Overall Size (mm)500*680*1100Net Weight (kg)250
