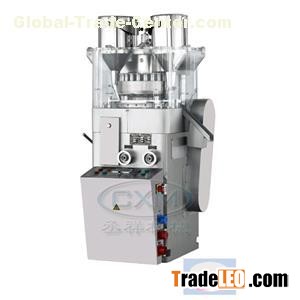

ApplicationThis model is used to press the various kinds of granules materials into tablets,Website:http://www.cxtabletpress.com, with the most outstanding advantage of being able to produce irregular tablets with wide different geometrical shapes, such as double layer tablets, ring shape tablets and double side engraved tablets.Feature:1.Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.2.Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.3.Hydraulic pressure system can assure stable working and good performance.4.When making double layer tablets, it is available to eject the first layer tablet for sampling.Main Technical Specifications:ModelZPW21HNumber of Stations21Max Main Pressure (KN)80Max Tablet Diameter (mm)round tablet20irregular tablet22Max Filling Depth (mm)18Max Tablet Thickness (mm)7Max Turret Speed (r/min)36Max Production Capacity (pcs/h)45000Motor Power (kw)4Overall Size (mm)860×780×1680Machine Weight (kg)1200
