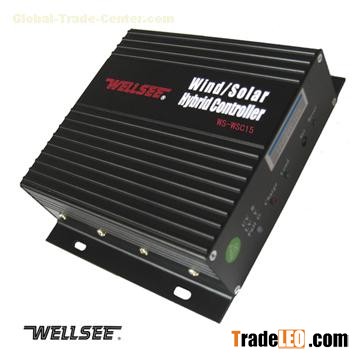

Brand:wellsee
Model:WS-WSC2415
MOQ:10 Sets
Functions:
1.Microprocessor intelligent control, exactly control.
2.Anti-surge protection,short-circuit protection and reversed polarity protection.
3.Overload protection,Overcharge protection,overdischarge protection.
4.Turn on light at dask autotmatically and turn off light at dawn automatically according to light intensity.
5.Temperature compensation function.
6.Recognize the wind turbine charging voltage and charging current exactly with safe and complete multiple wind turbine brake protection system.
Technical information:
| MODEL | WS- WSC15 10A | WS- WSC15 15A |
| System voltage | 12V/24V Automatic voltage recognition | |
| Max charge current | 10A | 15A |
| Max discharge current | 10A | 15A |
| Rated power for wind turbine | 100W - 400W(12V/24V) | |
| Charge off voltage HVD | 14.4V / 28.8V | |
| Low Voltage Directive LVD | 10.8V / 21.6V | |
| Low Voltage Restore LVR | 11.8V / 23.6V | |
| Charge loop drop | <300mV | |
| Discharge loop drop | <50mV | |
| Overload protection | 10.5A | 15.5A |
| Short-circuit protection | 15A | |
| Light operate | light control on + light control off | |
| Light time control | Light control on/off + time control on/off | |
| Time control classification | 0.5 hours started, half an hour of one grade, up to 10 hours | |
| Output route | single bulb | |
| Ambient temperature | -25°C ——+55°C | |
| Safe degree | IP22 | |
| Quiescent dissipation | 24mA | |
| Wind turbine braking mechanism | Unloading brake | |
| Control mode | Solar charge/wind charge are both for PWM | |
