Brand:dailux
Model:VP227
MOQ:10 Pieces
Product Description

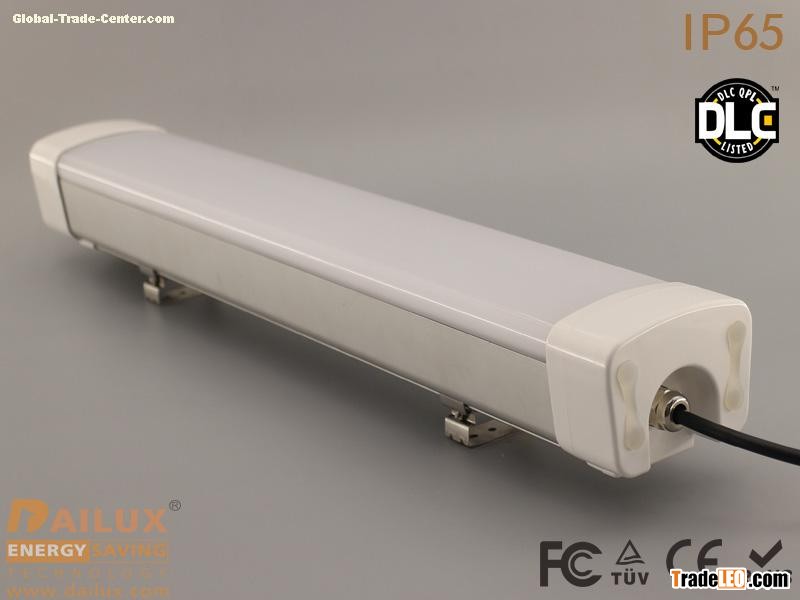

The Vapour Proof Light of LED structure simple and elegant designed, which used aluminum profiles made of one-piece greatly reduce the weight.Microwave sensor with contingency plans as a whole and integral two functions, emergency time for up to three hours, two functions can provide customer choice, at the same time.improve light utilization, very practical,truly Tri-Proof. There are waterproof and dustproof drop resistance against pressure and even moisture corrosion, using a very wide range. Get all customers' recognition.
Areas Of Application
This product is an ideal replacement of traditional Vapour Proof light. Hotel & restaurant; School & Offices. Supermarket & Hospital Commercial Complexes,Residential/Institution Buildings Corridor, Hall, Stairway entrance lighting Place where need energy saving and high color rendering index lighting are needed.
Product Models
| Part No. | Color temp | Output power | power consumption | Lumen Flux | Note |
| VP227 | 2700-6500K | 18.5W | 27W | 1600Lm | standard |
| VP227-E | 2700-6500K | 18.5W | 27W | 1600Lm | 3w emergency |
| VP227-MWS | 2700-6500K | 18.5W | 23W | 1600Lm | microwave sensor |
| VP227-MWS | 2700-6500K | 18.5W | 27W | 1600Lm | 3w emergency and microwave sensor |
| VP227-VD | 2700-6500K | 18.5W | 23W | 1600Lm | 1-10v Dimmable |
| VP227-VD-E | 2700-6500K | 18.5W | 27W | 1600Lm | 3w emergency and 1-10v Dimmable |
Electrical Specification
1.Power
| Input voltage | Input Frequency |
| AC 220~240V | 50/60Hz |
2.Emergency Option
The unit will provide 10W maximum output power at emergency mode. You can
switch on and off the LED l ights by the switch when main power on, but no matter
the switch is on or off, system will shift to emergency mode and powered by
batteries when the mains fails.
Batteries discharge specifications
| Part No | Battery adaischarge Current | Output Voltage | Emergency CC output | Emergency Power | Emergency Time | Batteries |
| VP22 | 500mA | 36-42v | 140mA | 3W | 3hours | 12v 1600mATemp NiMH |
3.Microwave Sensor Option
When the target object is in the detection range, the fitting will be 100% output,
and when the target object is out of the detection range, the fitting will dimm
down to hold power 30% output (default value) after time delay 1 minute
(default value). If during hold time there is no movement been detected again,
the fitting will be turned off, the default value of hold time is 24 hours
(never turn off ). A built-in lux controller will detect the brightness, the fitting
only active when ambient brightness below 25lux.
| Input Voltage | DC 5V |
| Microwave radiation frequency | ISM 5.8GHZ |
| Recommend installation height | 2.5m |
| Built in daylight sensor | ≦25Lux |
| Detecting distance | 6-8m |
| Detecting direction | 360° |
