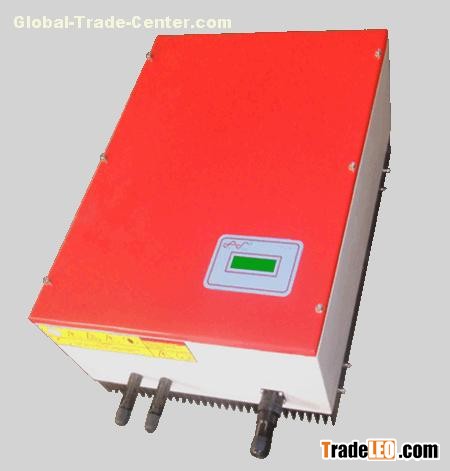

| Type | GSG-3KSL-TW |
| Isolating | Transformer |
| Rated Power(KW) | 3 |
| the max PV module power allowed(KW ) | 3.3 |
| Max Open Voltage(VDC) | 570 |
| Recommended PV module numbers | 16loops（17V/module） |
| MPPT range(VDC) | 150～450 |
| Rated AC output power(KW) | 3 |
| Grid voltage range(VAC) | 180～260/90～130 |
| Rated grid frequency(Hz) | 50 / 60Hz |
| Max efficiency | 94.00% |
| European standard efficiency | 93.50% |
| Display | LCD |
| THD(Iac) | THD(Iac)<4 %(full-capacity) |
| Power factor | ≥0.99(half-capacity) |
| MPPT Precision | 99% |
| Grid monitoring | RS485 |
| Electromagnetic Compatibility | EN50081,part1/ EN50082,part1 |
| Power disruption | EN61000-3-2 |
| Power Detection | DIN VDE 126 |
| Equipment self-consumption at night(W) | 0 |
| DC voltage ripple | Vpp < 10 % |
| Waterproof and Dustproof level | IP54(outdoors) |
| Prevent island method | Vac; Fac |
| Cooling method | By fan |
| Operating Environment Temperature | －20℃～＋50℃ |
| Operating Environment Humidity | 0～95%(Non-condensing) |
| Reference Dimension(mm) | 400×500×245 |
| Reference Weight(KG) | 55 |
