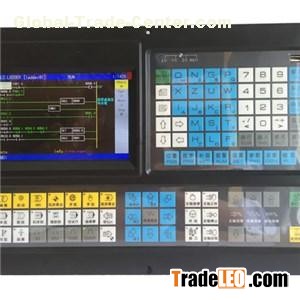

ECN3000TM milling controller is a new generation of CNC system .As the upgraded version,Website:http://www.hybridservo.com/, it supports milling, boring and drilling cycle. It employs 32 bits high-capability CPU and very large scale programmable device FPGA, applies real-time multi-task control technology and hardware interpolation technology, and is able to perform µm level precision motion control and PLC logic control Characteristics： ●Three axes control; 3 axes linkage; 2 analog spindles ●1ms interpolation cycle, 0.1μm control precision. ●Two channels -10V ~ 10V analog voltage output, support double spindle control ●Linear type, index type and S type etc. acceleration and deceleration types can be chosen. ●Embedded with PLC programming, the current running PLC programming can be chosen ●PLC displayed online, real time monitoring, signal real time tracing ●Supports statement type macro programming, supports macro codes with parameters calls. ●Flexible tapping and rigid tapping can be set by parameters● Includes spiral, scaling, polar coordinate, fixed circle and a variety of slotting compound cycle function. ●Includes historical alarm and resume operation functions, it’s convenient for users to operate and maintenance. ● Support multi-level passwords for equipment maintenance and management ● 36 point general input/36 point general output ●Support standard RS232 and USB port, support U disk documents operation, system configuration and software updated, it can meet the functions that documents transfer, serial ports DNC machining and USB online machining. Control axis: ● Control axis: 3 axis (X, Y, Z) ● linkage axis: 3 axis Feeding axis functions ● Position command range: Metric input (G21) -9999.9999mm ~9999.9999mm, the minimum command unit: 0.0001mm Inch input (G20): -999.9999inch ~999.9999inch, the minimum command unit: 0.0001inch ● Electronic gear ration: command multiplier 1 ~ 65536, command multiplier1 ~65536 ● Rapid traverse speed: maximum 60m/min ● Rapid traverse override: F0, 25%, 50%, 100% four levels real-time tuning ● Cutting feed rate: maximum feeding speed: maximum 15m/min (G94) or 500.00mm/r (G95) ● Feed rate override: 0 ~ 150% sixteen-level real-time tuning ● Manual feed rate: 0 ~ 150% sixteen-level real time tuning ● MPG feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears ● Single step feeding: 0.001mm, 0.01mm, 0.1mm, 1mm four gears ● Interpolation mode: linear interpolation, arc interpolation, spiral interpolation and ragid rapping ● Automatic chamfer function Acceleration/deceleration types: ● Cutting feeding: before the acceleration and deceleration linear type, before the acceleration and deceleration S type, after the acceleration and deceleration linear type and after the acceleration and deceleration index type. ● Fast moving: before the acceleration and deceleration linear type, before the acceleration and deceleration S type, after the acceleration and deceleration linear type and after the acceleration and deceleration index type. ●System with preview function, it can read 15 NC programming, make small line interpolation in high speed and smooth, it’s suit for components machine tool’s processing. ● The original speed of acceleration and deceleration, end speed and acceleration
