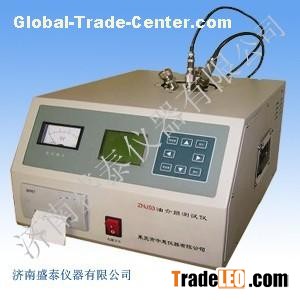

This instrument based on IEC and the relevant provisions of the state, to play their own technological superiority, carefully developed high-precision, digital instrumentation.。This instrument  uses high-frequency induction heating, even heating, fast temperature rise speed, short time. The microprocessor control and calculation, realize automation, capacitance and dielectric loss of high measuring precision, stability, good repeatability of data。Output voltage of 0~2000V is continuous and adjustable, suitable for different sample the voltage level required.。

Technical parameters

1、measurement range: capacitance: 1pF~200pF

Dielectric loss: 0~10%

2、measurement precision:

Capacitor: + ( 0.5% C+1pF )   Dielectric loss: + ( 1% D+0.00008 )

3、resolution: capacity: 0.01pF   Dielectric loss: 1 × 10-5

4:the range of temperature ：room temperature ~100 ℃,

5, the temperature precision ： ± 0.5 ℃

 6、 output voltage ：adjusted continuously: 0~2000V

7、 weight: 10kg

8、Size: 350x480X260
